MX23C4100

Features: • Switchable organization - 512K x 8 (byte mode) - 256K x 16 (word mode)• Single +5V power supply• Fast access time:100/120/150ns• Totally static operation• Completely TTL compatible• Operating current: 60mA• Standby current: 100uA• Package...

product image

MX23C4100 Picture
See larger image
SeekIC No. : 004431564 Detail

MX23C4100: Features: • Switchable organization - 512K x 8 (byte mode) - 256K x 16 (word mode)• Single +5V power supply• Fast access time:100/120/150ns• Totally static operation• C...

MX23C4100 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MX23C4100
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Switchable organization
    - 512K x 8 (byte mode)
    - 256K x 16 (word mode)
• Single +5V power supply
• Fast access time:100/120/150ns
• Totally static operation
• Completely TTL compatible
• Operating current: 60mA
• Standby current: 100uA
• Package
    - 40 pin DIP (600 mil)
    - 40 pin SOP


Pinout

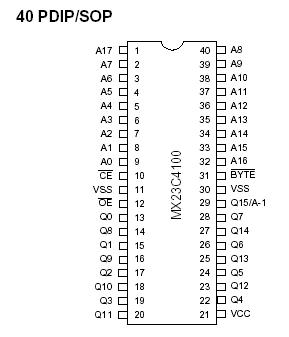

Connection Diagram


Specifications

RATING
VALUE
Ambient Operating Temperature

0 to 70

Storage Temperature
-65 to 125
Applied Input Voltage
-0.5V to 7.0V
Applied Output Voltage
-0.5V to 7.0V
VCC to Ground Potential
-0.5V to 7.0V
Power Dissipation
1.0W

*Note:
Stress greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended period may affect reliability.


Description

The MX23C4100 is a 5V only, 4M-bit, Read Only Memory. It is organized as 512Kx8 bits (byte mode) or as 256Kx16 bit (word mode) depending on BYTE (pin 31) voltage level. MX23C4100 has a static standby mode, and has an access time of 100/120/150/200ns. It is designed to be compatible with all microprocessors and similar applications in which high performance, large bit storage and simple interfacing are important design considerations.

MX23C4100 offers automatic power-down, with powerdown controlled by the chip enable (CE) input. When CE is not selected, the device automatically powers down and remains in a low-power standby mode as long as CE stays in the unselected mode.

The OE input as well as OE input may be programmed active Low.
