MX23C4096

Features: • 256K x 16 organization (JEDEC pin out)• Single +5V power supply• Fast access time: 100/120/150/200ns• Totally static operation• Completely TTl compatible• Operating current: 60mA• Standby current: 100uA• Package - 40 pin DIP (600 mil) - 4...

product image

MX23C4096 Picture
See larger image
SeekIC No. : 004431563 Detail

MX23C4096: Features: • 256K x 16 organization (JEDEC pin out)• Single +5V power supply• Fast access time: 100/120/150/200ns• Totally static operation• Completely TTl compatible...

MX23C4096 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MX23C4096
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 256K x 16 organization (JEDEC pin out)
• Single +5V power supply
• Fast access time: 100/120/150/200ns
• Totally static operation
• Completely TTl compatible
• Operating current: 60mA
• Standby current: 100uA
• Package
    - 40 pin DIP (600 mil)
    - 44 pin PLCC

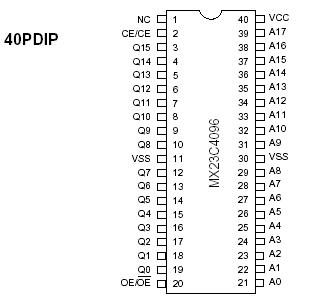

Pinout

Connection Diagram


Specifications

RATING
VALUE
Ambient Operating Temperature

0 to 70

Storage Temperature
-65 to 125
Applied Input Voltage
-0.5V to 7.0V
Applied Output Voltage
-0.5V to 7.0V
VCC to Ground Potential
-0.5V to 7.0V

*Notice:
Stress greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended period may affect reliability.


Description

The MX23C4096 is a 5V only, 4M-bit, Read Only Memory. It is organized as 512Kx16 bit. MX23C4096 has a static standby mode, and has an access time of 100/120/150/200ns. It is designed to be compatible with all microprocessors and similar applications in which high performance, large bit storage and simple interfacing are important design considerations.

MX23C4096 offers automatic power-down, with powerdown controlled by the chip enable (CE/CE) input. When CE/CE is not selected, the device automatically powers down and remains in a low-power standby mode as long as CE/CE stays in the unselected mode.

The OE/OE inputs as well as CE/CE input may be programmed either active High or Low.
