Product Details

Description

Features:

• Bit organization
      - 4M x 8 (byte mode)
      - 2M x 16 (word mode)
• Fast access time
      - Random access: 100ns (max.)
      - Page access: 30ns (max.)
• Page Size
      - 8 words per page
• Current
      - Operating:60mA
      - Standby:50uA
• Supply voltage
      - 5V±10%
• Package
      - 44 pin SOP (500mil)
      - 48 pin TSOP (12mm x 20mm)

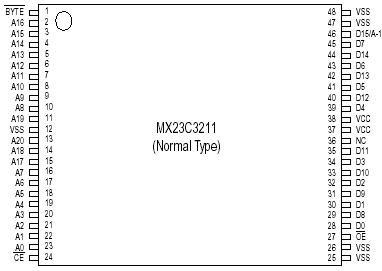

Pinout

Connection Diagram

Specifications

Item	Symbol	Ratings
Voltage on any Pin Relative to V_SS	V_IN	-1.3V to VCC+2.0V (Note)
Ambient Operating Temperature	T_opr	0 to 70
Storage Temperature	T_stg	-65 to 125

Note: Minimum DC voltage on input or I/O pins is -0.5V. During voltage transitions, inputs may undershoot VSS to -1.3V for periods of up to 20ns. Maximum DC voltage on input or I/O pins is VCC+0.5V. During voltage transitions, input may overshoot VCC to VCC+2.0V for periods of up to 20ns.
