MX23C2410

Features: • Bit organization- 3M x 8 (byte mode)- 1.5M x 16 (word mode)• Fast access time- Random access: 100ns (max.)• Current- Operating:60mA- Standby:100uA• Supply voltage- 5V±10%• Package- 44 pin SOP (500mil)- 42 pin DIP (600 mil) (word mode)PinoutSpecifications ...

product image

MX23C2410 Picture
SeekIC No. : 004431558 Detail

MX23C2410: Features: • Bit organization- 3M x 8 (byte mode)- 1.5M x 16 (word mode)• Fast access time- Random access: 100ns (max.)• Current- Operating:60mA- Standby:100uA• Supply voltage...

floor Price/Ceiling Price

Part Number:
MX23C2410
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Bit organization
- 3M x 8 (byte mode)
- 1.5M x 16 (word mode)
• Fast access time
- Random access: 100ns (max.)
• Current
- Operating:60mA
- Standby:100uA
• Supply voltage
- 5V±10%
• Package
- 44 pin SOP (500mil)
- 42 pin DIP (600 mil) (word mode)



Pinout

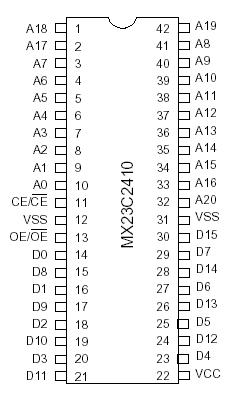

  Connection Diagram


Specifications

Item

Symbol

Ratings

Voltage on any Pin Relative to VSS

VIN

-0.5V to 7.0V

Ambient Operating Temperature

Topr

0°C to 70°C

Storage Temperature

Tstg

-65°C to 125°C
