Product Details

Description



Features:

• Bit organization
- 1M x 16 (word mode)
- 512K x 32 (double word mode)
• Fast access time
- Random access: 100ns (max.)
- Page access: 30ns (max.)
• Page Size
- 8 double words per page
• Current
- Operating: 100mA
- Standby: 50uA
• Supply voltage
- 5V±10%
• Package
- 70 pin SSOP (500 mil)


Pinout

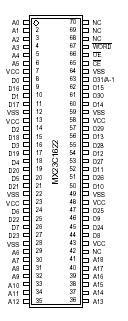

Connection Diagram


Specifications

Item

Symbol

Ratings

Voltage on any Pin Relative to VSS

VIN

-1.3V to VCC+2.0V(Note)

Ambient Operating Temperature

Topr

0°C to 70°C

Storage Temperature

Tstg

-65°C to 125°C

Note: Minimum DC voltage on input or I/O pins is -0.5V.During voltage transitions, inputs may undershoot VSS to -1.3V for periods of up to 20ns. Maximum DC voltage on input or I/O pins is VCC+0.5V. During voltage transitions,input may overshoot VCC to VCC+2.0V for periods of up to 20ns.
