MX-850

Features: • 50ns settling time to ±0.01%• 70ns settling time to ±0.003%• 100ns settling time to ±0.001%• 4 Channels, single-ended inputs• 100mW power dissipation• Small, 14-pin DIP packagePinoutSpecifications PARAMETER LIMITS UNITS +15V Supply, P...

product image

MX-850 Picture
See larger image
SeekIC No. : 004431863 Detail

MX-850: Features: • 50ns settling time to ±0.01%• 70ns settling time to ±0.003%• 100ns settling time to ±0.001%• 4 Channels, single-ended inputs• 100mW power dissipation•...

MX-850 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MX-850
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 50ns settling time to ±0.01%
• 70ns settling time to ±0.003%
• 100ns settling time to ±0.001%
• 4 Channels, single-ended inputs
• 100mW power dissipation
• Small, 14-pin DIP package


Pinout

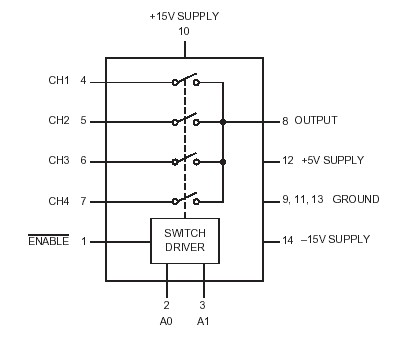

Connection Diagram


Specifications

PARAMETER
LIMITS
UNITS
+15V Supply, Pin 10
15V Supply, Pin 14
+5V Supply, Pin 12
Digital Inputs, Pins 1, 2, 3
Analog Inputs, Pins 4, 5, 6, 7
Analog Input Current
Lead temperature (10 seconds)
Switching Frequency/Duty Cycle
0.5 to +16.5
+0.5 to 16.5
0.5 to +7
0.5 to +6
10.5 to +10.5
±20
300
10/50
Volts
Volts
Volts
Volts
Volts
mA

MHz/%



Description

The MX-850 is a precision, high-speed multiplexer characterized for 10, 12, 14 and 16-bit applications. The performance benchmarks are its 50 nanosecond maximum settling time to ±0.01% accuracy and its unprecedented ±0.001% accuracy specification.

Packaged in a miniature, 14-pin, ceramic DIP, the MX-850 operates from ±15V and +5V supplies and consumes a maximum 270mW. Models are available for either 0 to +70 or 55 to +125 operation.
