MV5433

Standard LED - Through Hole Hi Eff Red Solid State Rectang

product image

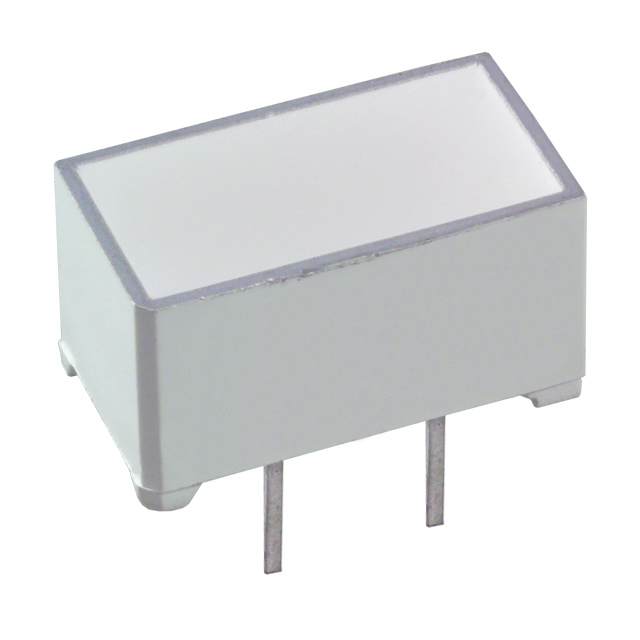

MV5433 Picture
See larger image
SeekIC No. : 0061061 Detail

MV5433: Standard LED - Through Hole Hi Eff Red Solid State Rectang

MV5433 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MV5433
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Illumination Color : Yellow, Green Luminous Intensity : 2 mcd
Viewing Angle : 100 deg Lens Color/Style : Diffused
LED Size : T-1 3/4 Packaging : Bulk

Description

Wavelength/Color Temperature :
Forward Current :
Forward Voltage :
Packaging : Bulk
Viewing Angle : 100 deg
Luminous Intensity : 2 mcd
LED Size : T-1 3/4
Lens Color/Style : Diffused
Illumination Color : Yellow, Green


Features:

• Popular T-1 3/4 package
• Wide viewing angle
• Solid state reliability
• TTL compatible


Specifications

Parameter
AlGaAs RED
HER
Green
Yellow
Orange
Unit
Continuous Forward Current (IF)
30
30
30
20
30
mA
Peak Forward Current (IF)
(f = 1.0 KHz, Duty Factor = 1/10)
90
90
90
60
90
mA
Power Dissipation (PD)
120
120
120
85
120
mW
Reverse Voltage (VR)
5
5
5
5
5
V
Operating Temperature (TOPR)
-55 to +100
°C
Storage Temperature (TSTG)
-55 to +100
°C
Lead Soldering Time (TSOL)
260 for 5 sec
°C



Description

The MV5433 T-1 3/4 (5 mm) lamp is a three-lead bicolor light source with a central common cathode lead. Each lamp comes with a white diffused lens and has a 100° viewing angle.




Parameters:

Technical/Catalog InformationMV5433
VendorFairchild Optoelectronics Group
CategoryOptoelectronics
ColorGreen, Yellow
Lens Style/SizeRound, 5mm, T-1 3/4
Millicandela Rating6mcd Green, 6mcd Yellow
Voltage - Forward (Vf) Typ2.3V Green, 2.3V Yellow
Wavelength - Dominant565nm, 585nm
Wavelength - Peak565nm, 585nm
Current - Test20mA
Viewing Angle100°
Lens TypeDiffused, White
Luminous Flux13 mlm Green, 13 mlm Yellow
Package / CaseRadial - 3 lead
Mounting TypeThrough Hole
PackagingBulk
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MV5433
MV5433
