MV5089

Features: ·Pin-for-Pin Replacement for MK5089·Low Standby Power·Minimum External Parts Count·2.75V to 10V Operatlon·2-of-8 Keyboard Input·High Accuracy Tones Provided by 3.58MHz Crystal Oscillator·Pin-Selectable Inhibit of Single Tone GenerationApplication·Telephone Sets·Mobile Radio·Remote Contro...

product image

MV5089 Picture
See larger image
SeekIC No. : 004431343 Detail

MV5089: Features: ·Pin-for-Pin Replacement for MK5089·Low Standby Power·Minimum External Parts Count·2.75V to 10V Operatlon·2-of-8 Keyboard Input·High Accuracy Tones Provided by 3.58MHz Crystal Oscillator·P...

MV5089 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MV5089
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Pin-for-Pin Replacement for MK5089
·Low Standby Power
·Minimum External Parts Count
·2.75V to 10V Operatlon
·2-of-8 Keyboard Input
·High Accuracy Tones Provided by 3.58MHz Crystal Oscillator
·Pin-Selectable Inhibit of Single Tone Generation


Application

·Telephone Sets
·Mobile Radio
·Remote Control
·Point-of-Sale and Banking Terminals
·Process Control


Pinout

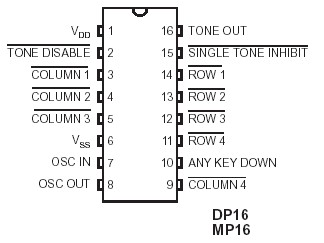

Connection Diagram


Specifications

  Min. Max.   Min. Max.
VDD - VSS
Voltage on any pin
Current on any pin
Operating temperature
Storage temperature		 -0.3V
VSS - 0.3V
-40
-65		 10.5V
VDD + 0 3V
10 mA
+85
+150		 Power dissipation
Derate 16 mW/ above 75
(All leads soldered to PCB)		   850 mW



Description

The MV5089 is fabricated using ISO-CMOS high density technology and offers low power and wide voltage operation. An inexpensive 3.58MHz TV crystal completes the reference oscillator. From this frequency are derived 8 different sinusoidal frequencies which, when appropriately mixed, provide Dual-Tone Multi-Frequency (DTMF) tones.

MV5089 Inputs are compatible with a standard 2-of-8 active-low keyboard and the keyboard entries determine the correct division of the reference frequency by the row and column counters.

D-to-A conversion, using R-2R ladder networks, results in a staircase approximation of a sinewave with low total distortion.

Frequency and amplitude stability over operating voltage and temperature range are maintained within industry specifications.
