MURHD560T4G

Rectifiers MHz FAST RECTIFIER 5A 600V

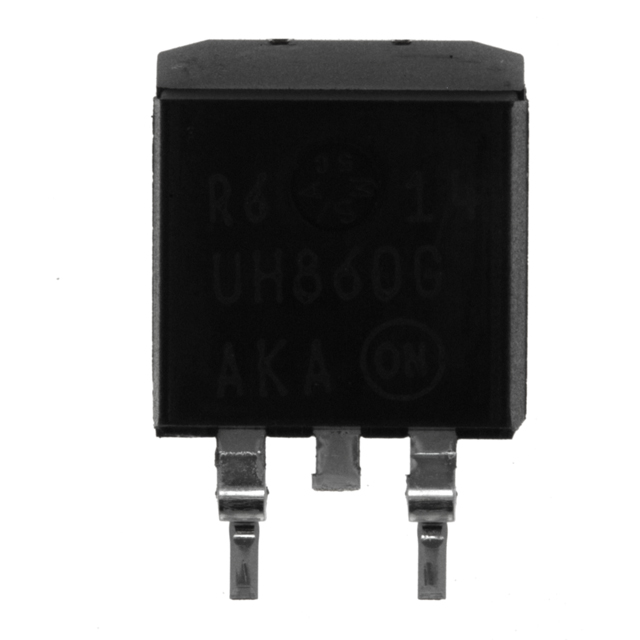

product image

MURHD560T4G Picture
See larger image
SeekIC No. : 00173565 Detail

MURHD560T4G: Rectifiers MHz FAST RECTIFIER 5A 600V

MURHD560T4G Data Sheet

floor Price/Ceiling Price

US $ .25~.29 / Piece | Get Latest Price
Part Number:
MURHD560T4G
Mfg:
ON Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~1650
  • 1650~2000
  • 2000~2500
  • 2500~5000
  • Unit Price
  • $.29
  • $.26
  • $.26
  • $.25
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Ultra Fast Recovery Rectifiers Configuration : Dual Common Anode
Reverse Voltage : 600 V Forward Voltage Drop : 2.7 V
Recovery Time : 30 ns Forward Continuous Current : 5 A
Max Surge Current : 50 A Reverse Current IR : 10 uA
Mounting Style : SMD/SMT Package / Case : DPAK
Packaging : Reel

Description

Product : Ultra Fast Recovery Rectifiers
Reverse Voltage : 600 V
Mounting Style : SMD/SMT
Packaging : Reel
Package / Case : DPAK
Forward Continuous Current : 5 A
Max Surge Current : 50 A
Reverse Current IR : 10 uA
Recovery Time : 30 ns
Configuration : Dual Common Anode
Forward Voltage Drop : 2.7 V


Parameters:

Technical/Catalog InformationMURHD560T4G
VendorON Semiconductor
CategoryDiscrete Semiconductor Products
Diode Type Standard
Voltage - DC Reverse (Vr) (Max)600V
Current - Average Rectified (Io)5A
Voltage - Forward (Vf) (Max) @ If2.7V @ 5A
Reverse Recovery Time (trr)30ns
Current - Reverse Leakage @ Vr10A @ 600V
SpeedFast Recovery =< 500ns, > 200mA (Io)
Mounting TypeSurface Mount
Package / CaseD&sup2;Pak, SMD-220, TO-263 (2 leads + tab)
PackagingTape & Reel (TR)
Capacitance @ Vr, F-
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MURHD560T4G
MURHD560T4G
