MURB2020CT

Product : Ultra Fast Recovery Rectifiers
Mounting Style : SMD/SMT
Reverse Voltage : 200 V
Packaging : Tube
Max Surge Current : 100 A
Forward Continuous Current : 20 A
Configuration : Dual Common Cathode

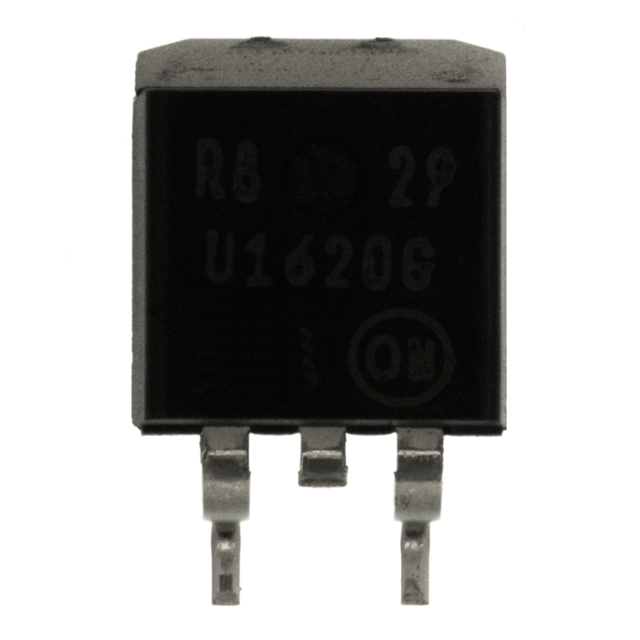

Package / Case : D2PAK
Recovery Time : 35 ns
Reverse Current IR : 15 uA
Forward Voltage Drop : 1.15 V at 16 A


Features:

• Ultrafast Recovery Time
• Low Forward Voltage Drop
• Low Leakage Current
• 175°C Operating Junction Temperature


Specifications

	Parameters		Max	Units
VRRM	Peak Repetitive Peak Reverse Voltage		200	V
IF(AV)	Average Rectified Forward Current Total Device, (Rated VR ), TC = 145°C	Per Leg Total Device	10 20	A
IFSM	Non Repetitive Peak Surge Current	Per Leg	100
IFM	Peak Repetitive Forward Current (Rated VR , Square wave, 20 KHz), TC = 145°C	Per Leg	20
TJ, TSTG	Operating Junction and Storage Temperatures		- 65 to 175	°C

Description

International Rectifier's MURB2020CT series are the state of the art Ultra fast recovery rectifiers specifically designed with optimized performance of forward voltage drop and ultra fast recovery time.

The planar structure and the platinum doped life time control, guarantee the best overall performance, ruggedness and reliability characteristics.

These MURB2020CTs are intended for use in the output rectification stage of SMPS, UPS, DC-DC converters as well as free-wheeling diode in low voltage inverters and chopper motor drives.

Their extremely optimized stored charge and low recovery current minimize the switching losses and reduce over dissipation in the switching element and snubbers.
