Part Number:: MTP3N100E
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

MTP3 evaluate
Features: Low VFLow profile packageDirect Mounting to heatsinkFlat-Pin/ Round-Pin versions with PC...
MTP3055 evaluate
Features: • Avalanche Energy Specified• IDSS and VDS(on) Specified at Elevated Tempera...
MTP3055E evaluate
Features: `TYPICAL RDS(on) = 0.1 `AVALANCHERUGGED TECHNOLOGY`100% AVALANCHE TESTED`175 OPERATING T...

Product Details

Description

Pinout

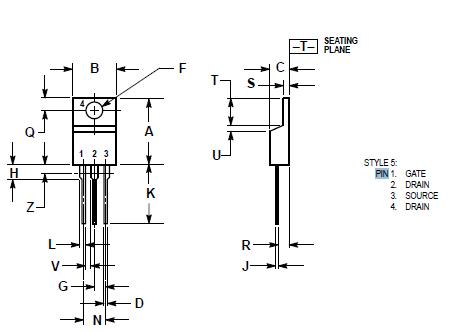

Connection Diagram

Specifications

Rating	Symbol	Value	Unit
DrainSource Voltage	V_DSS	1000	Vdc
DrainGate Voltage (R_GS = 1.0 MW)	V_DGR	1000	Vdc
GateSource Voltage - Continuous GateSource Voltage - NonRepetitive (tp 3 10 ms)	V_GS V_GSM	± 20 ± 40	Vdc Vpk
Drain Current - Continuous Drain Current - Continuous @ 100°C Drain Current - Single Pulse (tp 3 10 ms)	I_D I _DI_DM	3.0 2.4 9.0	Adc Apk
Total Power Dissipation Derate above 25°C	P_D	125 1.0	Watts W/°C
Operating and Storage Temperature Range	T_J , T_stg	55 to 150	°C
Single Pulse DraintoSource Avalanche Energy - Starting TJ = 25°C (VDD = 150 Vdc, VGS = 10 Vdc, IL = 7.0 Apk, L = 10 mH, RG = 25 W)	EAS	245	mJ
Thermal Resistance - Junction to Case Thermal Resistance - Junction to Ambient	R_qJC R_qJA	1.00 62.5	°C/W
Maximum Lead Temperature for Soldering Purposes, 1/8, from case for 10 seconds	T_L	260
