MTC600

Features: • 600 W output power• 16 Channels of• 12 V @ 7.6 A max• 3.3 V @ 150 mA max• Supports:• 12x AMC's• 2x MCH's• 2x CU's• Supports N+1 output redundancy, N3• Supports 1+1 input redundancySpecificationsTotal Max Power: 600 W Total M...

product image

MTC600 Picture
See larger image
SeekIC No. : 004430518 Detail

MTC600: Features: • 600 W output power• 16 Channels of• 12 V @ 7.6 A max• 3.3 V @ 150 mA max• Supports:• 12x AMC's• 2x MCH's• 2x CU's• Supports N+1 outp...

MTC600 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MTC600
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 600 W output power
• 16 Channels of
• 12 V @ 7.6 A max
• 3.3 V @ 150 mA max
• Supports:
• 12x AMC's
• 2x MCH's
• 2x CU's
• Supports N+1 output redundancy, N3
• Supports 1+1 input redundancy




Specifications

  • Total Max Power: 600 W
  • Total Max Current: 50 A
  • Input Voltage: 90 V to 264 V
  • Output Voltage: 3.16 V to 12.95 V
  • Outputs: Single
  • Size (L x W x H): 7.370" x 2.340" x 2.890"
  • Warranty: 2 years
  • Operating Temperature: -5 to +45 C





    • Description

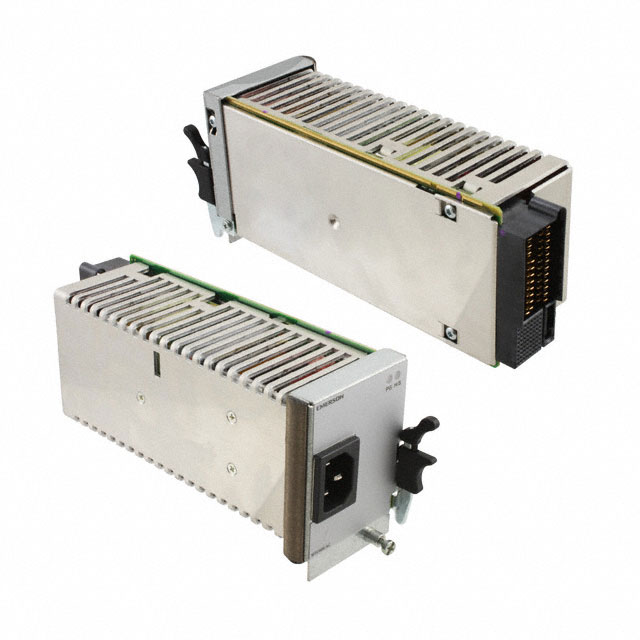

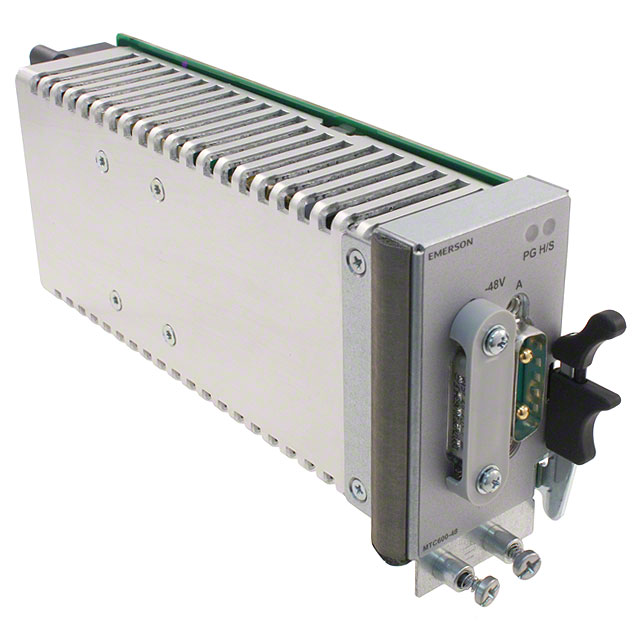

    The MTC600 series of Power Modules are designed for use in MicroTCA systems and can support shelves, cube and other implementations and is compliant to PICMG MicroTCA .0 Revision 1.0 specification.

    The MTC600 Power Modules implement the functionality necessary to power, manage and protect a MicroTCA system comprising up to:
    ·12x AdvancedMCs
    ·2x MicroTCA Carrier Hubs
    ·2x Cooling Units

    The MTC600 Power Modules will:
    ·On system bring-up, provide the power necessary for MCH and CU system elements.
    ·Support redundant IPMI (IPMB-0) communication with the MCH/ Carrier-Manager
    ·Under the command of the carrier manager, enable and provide power to AMCs, CUs and additional MCHs
    ·Monitor and Report power system status and conditions of operation
    ·Manage and isolate faults affecting the power system
