Features:

·Four output driver per package
·TTL/CMOS compatible inputs (High active)


Application

·Head needle drive for printer
·Stepping motor drive for office automation products


Pinout

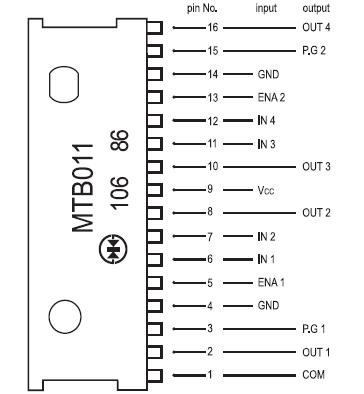

Connection Diagram


Specifications

Item Symbol Test Conditions min. typ. max. Unit
Output Saturation Voltage VCE(sat) VCC=5V,IC=3A,VIN=VENA=0V   1.3 1.7 V
Output Leakage Current ICE VCE=80V     10 A
Output Sustaining Voltage VCEO(sus) IC=0.4A 80 15   V
Logic Supply Current(Standby) ICC(OFF) VCC=5V,VIN="H"   55   mA
Logic Supply Current(All Circuit ON) ICC(ON) VCC=5V,VIN="L"       mA
Input High Voltage ICC(ON) VCC = 5V 2.7     V
Input Low Voltage VINL VCC = 5V     1.5 V
Logic Low Input Current lINL VCC = 5V,VIN=0V   -10 -50 A
Enable"H"Input Voltage VENAH VCC=5V 2.7     V
Enable"L"Input Voltage VENAL VCC=5V     1.5 V
Enable"L"Input Current IENAL VCC=5V,VENA=0V   -10 -150 A
Thermal Resistance jc       3.57 /W
ja       25
Reverse Current(each flyback diode) IR VR=80V     10 A
Reverse Voltage(flyback diode) VF IF=3A   1.5 1.7 V
Dielectric Strength VISO Substrate to Terminals 500     V
