MTA001M

Interface - Specialized Motor Drive IC

product image

MTA001M Picture
See larger image
SeekIC No. : 00388280 Detail

MTA001M: Interface - Specialized Motor Drive IC

MTA001M Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MTA001M
Mfg:
Shindengen
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product Type : High Output Interface Driver IC Maximum Operating Temperature : + 120 C
Mounting Style : Through Hole Package / Case : ZIP-27

Description

Operating Supply Voltage :
Supply Current :
Maximum Power Dissipation :
Mounting Style : Through Hole
Product Type : High Output Interface Driver IC
Maximum Operating Temperature : + 120 C
Package / Case : ZIP-27


Features:

·Nine output drivers per package
·TTL/CMOS compatible inputs (Low active)
·Enable input


Application

·Head needle drive for printer ・ECR
·Stepping motor drive for office automation products
·Display drive


Pinout

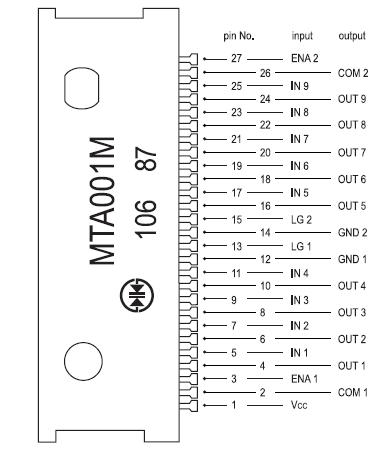

Connection Diagram


Specifications

Item Symbol Ratings Unit
Output Voltage VCEO(SUS) 80 V
Output Current IO 2 A
Reverse Voltage(flyback diode) VR 80 V
Forward Current(each flyback diode) IF 2 A
Forward Current(each common terminal) IF 10 A
Output Current(each GND terminal) IGND 10 A
Logic Supply Voltage VCC 0~7 V
Logic Input Voltage VIN 0~VCC V
Enable Input Voltage VENA 0~VCC V
Total Power Dissipation PT 5 W
Junction Temperature Tj 150
Storage Temperature Tstg -40~150
