MT9300BL

Features: • Independent multiple channels of echo cancellation; from 32 channels of 64 ms to 16 channels of 128 ms with the ability to mix channels at 128 ms or 64 ms in any combination• Independent Power Down mode for each group of 2 channels for power management• ITU-T G.165 an...

product image

MT9300BL Picture
See larger image
SeekIC No. : 004430287 Detail

MT9300BL: Features: • Independent multiple channels of echo cancellation; from 32 channels of 64 ms to 16 channels of 128 ms with the ability to mix channels at 128 ms or 64 ms in any combination•...

MT9300BL Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MT9300BL
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Independent multiple channels of echo cancellation; from 32 channels of 64 ms to 16 channels of 128 ms with the ability to mix channels at 128 ms or 64 ms in any combination
• Independent Power Down mode for each group of 2 channels for power management
• ITU-T G.165 and G.168 compliant
• Field proven, high quality performance
• Compatible to ST-BUS and GCI interface at 2 Mb/s serial PCM
• PCM coding, /A-Law ITU-T G.711 or sign magnitude
• Per channel Fax/Modem G.164 2100 Hz or G.165 2100 Hz phase reversal Tone Disable
• Per channel echo canceller parameters control
• Transparent data transfer and mute
• Fast reconvergence on echo path changes
• Non-Linear Processor with high quality subjective performance
• Protection against narrow band signal divergence
• Offset nulling of all PCM channels
• 10 MHz or 20 MHz master clock operation
• 3.3 Volts operation with 5-Volt tolerant inputs
• No external memory required
• Non-multiplexed microprocessor interface
• IEEE-1149.1 (JTAG) Test Access Port


Application

• Voice over IP network gateways
• Voice over ATM, Frame Relay
• T1/E1/J1 multichannel echo cancellation
• Wireless base stations
• Echo Canceller pools
• DCME, satellite and multiplexer systems


Pinout

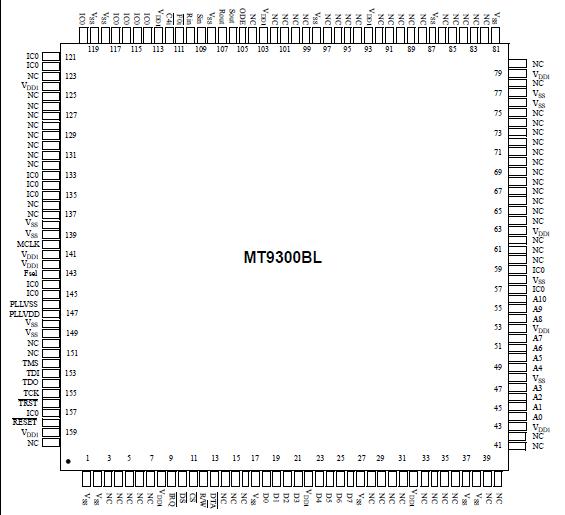

Connection Diagram


Specifications

  Parameter Symbol Min Max Units
1 Supply Voltage VDD -0.3 5.0 V
2 Voltage on any 3.3V I/O pins (other than supply
pins)		 VI3 VSS - 0.3 VDD1+0.5 V
3 Voltage on any 5V Tolerant I/O pins (other than supply
pins)		 VI5 VSS - 0.3 5.5 V
4 Continuous Current at digital outputs IO   20 mA
5 Package power dissipation PD   2.0 W
6 Storage temperature TS -55 150

* Exceeding these values may cause permanent damage. Functional operation under these conditions is not implied.


Description

The MT9300BL Voice Echo Canceller implements a cost effective solution for telephony voice-band echo cancellation conforming to ITU-T G.168 requirements. The MT9300BL architecture contains 16 groups of two echo cancellers (ECA and ECB) which can be configured to provide two channels of 64 milliseconds or one channel of 128 milliseconds echo cancellation. This provides 32 channels of 64 milliseconds to 16 channels of 128 milliseconds echo cancellation or any combination of the two configurations. The MT9300BL supports ITU-T G.165 and G.164 tone disable requirements.
