MT9173

Features: • Receive sync output pulse• Full duplex transmission over a single twisted pair• Selectable 80 or 160 kbit/s line rate• Adaptive echo cancellation• Up to 3km (9173) and 4 km (9174) loop reach• ISDN compatible (2B+D) data format• Transparent mode...

product image

MT9173 Picture
See larger image
SeekIC No. : 004430277 Detail

MT9173: Features: • Receive sync output pulse• Full duplex transmission over a single twisted pair• Selectable 80 or 160 kbit/s line rate• Adaptive echo cancellation• Up to 3km...

MT9173 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MT9173
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Receive sync output pulse
• Full duplex transmission over a single twisted pair
• Selectable 80 or 160 kbit/s line rate
• Adaptive echo cancellation
• Up to 3km (9173) and 4 km (9174) loop reach
• ISDN compatible (2B+D) data format
• Transparent modem capability
• Frame synchronization and clock extraction
• MITEL ST-BUS compatible
• Low power (typically 50 mW), single 5V supply


Application

• TDD Digital PCS (DECT, CT2, PHS) base stations requiring cell synchronization
• Digital subscriber lines
• High speed data transmission over twisted wires
• Digital PABX line cards and telephone sets
• 80 or 160 kbit/s single chip modem


Pinout

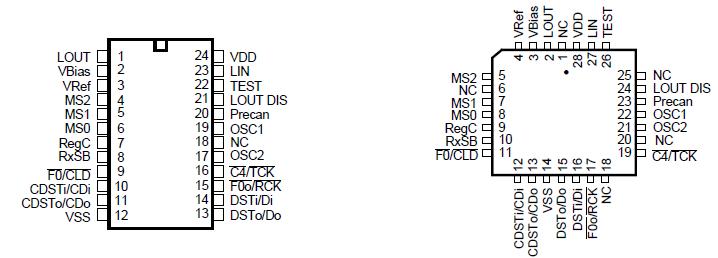

Connection Diagram


Specifications



Description

The MT9173 (DSIC) and MT9174 (DNIC) are functionally identical to the MT9171/72 except for the addition of one feature. The MT9173/74 include a digital output pin indicating the temporal position of the received "SYNC" bit of the biphase transmission. This feature is especially useful for systems such as PCS wireless base station applications requiring close synchronization between microcells.

The MT9173 and MT9174 are identical except for the MT9173 having a shorter loop reach. The generic "DNIC" will be used to reference both devices unless otherwise noted. The MT9173/74 are fabricated in Mitel's ISO2-CMOS process.
