Product Details

Description



Features:

• Full duplex transmission over a single twisted pair
• Selectable 80 or 160 kbit/s line rate
• Adaptive echo cancellation
• Up to 3km (9171) and 4 km (9172)
• ISDN compatible (2B+D) data format
• Transparent modem capability
• Frame synchronization and clock extraction
• Zarlink ST-BUS compatible
• Low power (typically 50 mW), single 5V supply


Application

• Digital subscriber lines
• High speed data transmission over twisted wires
• Digital PABX line cards and telephone sets
• 80 or 160 kbit/s single chip modem


Pinout

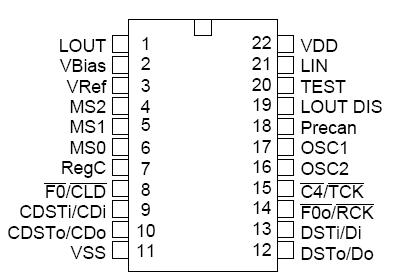

Connection Diagram


Specifications

  Parameter Symbol Min Max Units
1 Supply Voltage VDD -0.3 7 V
2 Voltage on any pin (other than supply) VMax -0.3 VDD+0.3 V

3

 Current on any pin (other than supply) IMax   40 mA
4 Storage Temperature TST -65 +150 °C
5 Package Power Dissipation (Derate 16mW/°C above 75°C) PDiss   750 mW



Description

The MT9171AE are pin for pin compatible replacements for the MT8971 and MT8972, respectively. They are multi-function devices capable of providing high speed, full duplex digital transmission up to 160 kbit/s over a twisted wire pair. MT9171AE use adaptive echo-cancelling techniques and transfer data in (2B+D) format compatible to the ISDN basic rate. Several modes of operation allow an easy interface to digital telecommunication networks including use as a high speed limited distance modem with data rates up to 160 kbit/s. MT9171AE function identically but with the DSIC having a shorter maximum loop reach specification. The generic "DNIC" will be used to reference both devices unless otherwise noted.

The MT9171AE is fabricated in Zarlink's ISO2-CMOS process.
