MT90868AG

Features: • 32,768-channel x 8,192-channel blocking switching between backplane and local streams• 8,192-channel x 8,192-channel non-blocking switching for local input and output streams• 1,024-channel x 1,024-channel switch between two selected backplane input and output streams...

product image

MT90868AG Picture
See larger image
SeekIC No. : 004430239 Detail

MT90868AG: Features: • 32,768-channel x 8,192-channel blocking switching between backplane and local streams• 8,192-channel x 8,192-channel non-blocking switching for local input and output streams...

MT90868AG Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MT90868AG
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 32,768-channel x 8,192-channel blocking
  switching between backplane and local streams
• 8,192-channel x 8,192-channel non-blocking
  switching for local input and output streams
• 1,024-channel x 1,024-channel switch between
  two selected backplane input and output streams
• Rate conversion between backplane and local streams
• Accepts ST-BUS streams with data rate of
  16.384Mb/s or 32.768Mb/s for backplane port
• Accepts ST-BUS streams with data rate of
  8.192Mb/s for local port
• Per-stream channel and bit delay for the local input streams
• Per-stream channel and bit advancement for the local output streams
• Per-stream bit delay for the backplane input streams
• Per-stream bit advancement for the backplane output streams
• Per-channel constant throughput delay
• Per-channel high impedance output control for local streams
• Per-channel high impedance or driven-high output
  control for backplane streams
• Per-channel message mode for backplane and
  local output streams
• Pseudo-Random Binary Sequence (PRBS)
  pattern generation and testing for local and
  backplane ports
• Non-multiplexed microprocessor interface
• Connection memory block programming for fast
  device initialization
• Tristate-control outputs for external drivers on local port


Application

• Mediation switches
• High capacity TDM switching platforms utilizing DS-3/OC-3 rates
• Central office switches
• Access equipment


Pinout

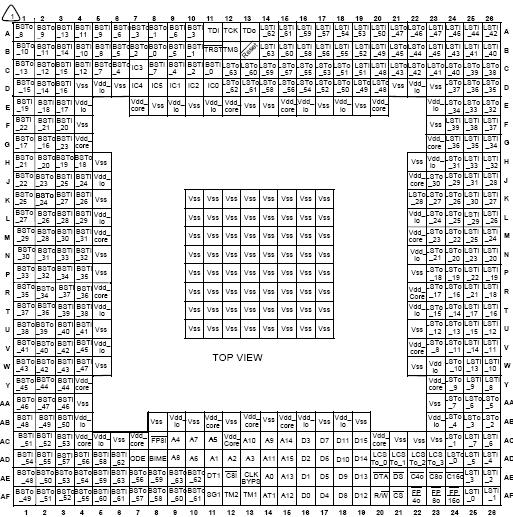

Connection Diagram


Specifications

  Parameter Symbol Min Max Units
1 Core Supply Voltage VDD_CORE -0.5 2.5 V
2 I/O Supply Voltage VDD_IO -0.5 5.0 V
3 Input Volta VI_3V -0.5 VDD + 0.5 V
4 Input Voltage (5V tolerant inputs) VI_5V -0.5 7.0 V
5 Continuous Current at digital outputs LO   15 mA
6 Package power dissipation PD   2 W
7 Storage temperature TS -55 +125 °C



Description

The MT90868AG Digital Switch provides switching capacities of 32,768 x 8,192 channels between backplane and local streams, 8,192 x 8,192 channels among local streams and 1,024 x 1,024 channels among two selected backplane streams. The local port has sixty-four input and sixty-four output streams which operate at 8.192Mb/s. The backplane port of MT90868AG  has sixty-four input and sixty-four output streams which operate at 16.384Mb/s or 32.768Mb/s.

The MT90868AG has features that are programmable on per-stream or per-channel basis including message mode, input bit delay, output bit advancement, constant throughput delay, high impedance output control for both local and backplane streams and the driven-high backplane output control.
