MT90863

Features: • 2,048 × 512 and 512 x 512 switching among backplane and local streams• Rate conversion between 2.048, 4.096 and 8.192Mb/s• Optioal sub-rate switch configuration for 2.048 Mb/s streams• Per-channel variable or constant throughput delay• Compatible to HMVIP ...

product image

MT90863 Picture
See larger image
SeekIC No. : 004430235 Detail

MT90863: Features: • 2,048 × 512 and 512 x 512 switching among backplane and local streams• Rate conversion between 2.048, 4.096 and 8.192Mb/s• Optioal sub-rate switch configuration for 2.0...

MT90863 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MT90863
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 2,048 × 512 and 512 x 512 switching among backplane and local streams
• Rate conversion between 2.048, 4.096 and 8.192Mb/s
• Optioal sub-rate switch configuration for 2.048 Mb/s streams
• Per-channel variable or constant throughput delay
• Compatible to HMVIP and H.100 specifications
• Automatic frame offset delay measurement
• Per-stream frame delay offset programming
• Per-channel message mode
• Per-channel direction control
• Per-channel high impedance output control
• Non-multiplexed microprocessor interface
• Connection memory block programming
• 3.3V local I/O with 5V tolerant inputs and TTL-compatible outputs
• IEEE-1149.1 (JTAG) Test Port


Application

• Medium and large switching platforms
• CTI application
• Voice/data multiplexer
• Support ST-BUS, HMVIP and H.100 interfaces


Pinout

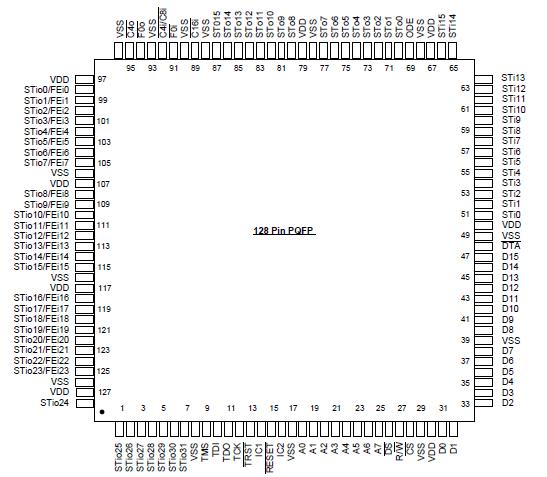

Connection Diagram


Specifications

  Parameter Sym Min Max Units
1 Supply Voltage VDD -0.5 5.0 V
2 Input Voltage VI -0.5 VDD +0.5 V
3 Output Voltage Vo -0.5 VDD +0.5 V
4 Package power dissipation PD   2 W
5 Storage temperature TS - 55 +125



Description

The MT90863 Rate Conversion Switch provides switching capacities of 2,048×512 channels between backplane and local streams, and 512 x 512 channels for local streams. The connected serial inputs and outputs may have 32, 64 and 128 64kb/s channels per frame with data rates of 2.048Mb/s, 4.096Mb/s and 8.192Mb/s respectively.

The MT90863 also offers a sub-rate switching configuration which allows 2-bit wide 16kb/s data channels to be switched within the device.

 The MT90863 has features (such as: message mode; input and output offset delay; direction control; and, high impedance output control) that are programmable on per-stream or per-channel basis.
