Features:

• Configurable for parallel-to-serial or
  serial-to-parallel conversion of 1024 channels
• Supports serial data rates of 2.048 Mbit/s or
  4.096 Mbit/s
• Interfaces to Zarlink's MT9080 Switch Matrix
  Module (SMX)
• Generates all framing signals required in 1K or
  2K switching applications
• Expandable to 2048ch. systems
• Compatible to ST-BUS


Application

• Custom designed small and medium digital
  switch matrices using Zarlink MT9080B
• Rate conversion applications
• Interfacing a parallel system bus to devices
  utilizing serial I/O
• Telephony:PBX, CO, digital cross connects,
  digital local loop
• Datacom: Integrated Access Concentrators,
  WAN/LAN gateways


Pinout

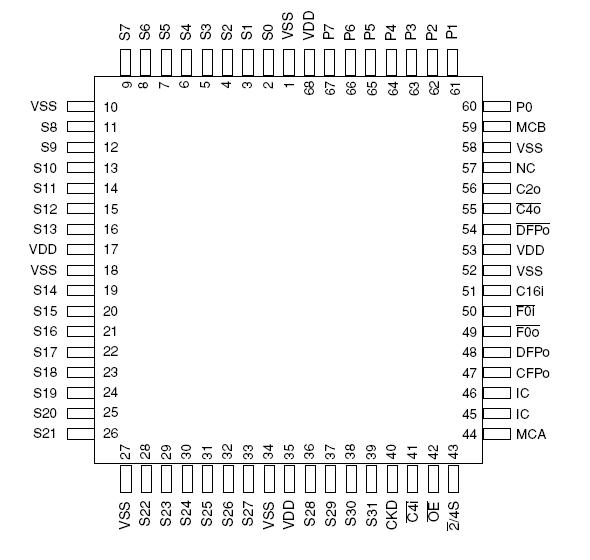

Connection Diagram


Specifications

Parameter Symbol Min Max Units
1 VDD- VSS -0.3 7 V
2 Voltage on Digital Inputs VI VSS-0.3 VDD+0.3 V
3 Voltage on Digital Outputs VO VSS-0.3 VDD+0.3 V
4 Current at Digital Outputs LO 40 mA
5 Storage Temperature TS -65 125 °C
6 Package Power Dissipation PD 2 W



Description

The MT9085B Parallel Access Circuit (PAC) provides an interface between an 8 bit, parallel time division multiplexed bus and a serial time division multiplexed bus. A single PAC device will accept data clocked out on the parallel bus of the Zarlink MT9080 (SMX) and output it on 32/16 time division multiplexed serial bus streams. A second device can be configured to perform the conversion from the serial format into an SMX compatible parallel format. The time division, serial multiplexed streams of MT9085B may operate at 2.048 Mbit/s or at 4.096 Mbit/s. The PAC generates all framing signals required by the SMX for 1024 and 2048 channel configurations.
