MT90823

Features: • 2,048 ×2,048 channel non-blocking switching at 8.192 Mb/s• Per-channel variable or constant throughput delay• Automatic identification of ST-BUS/GCI interfaces• Accept ST-BUS streams of 2.048, 4.096 or 8.192 Mb/s• Automatic frame offset delay measurement&#...

product image

MT90823 Picture
See larger image
SeekIC No. : 004430226 Detail

MT90823: Features: • 2,048 ×2,048 channel non-blocking switching at 8.192 Mb/s• Per-channel variable or constant throughput delay• Automatic identification of ST-BUS/GCI interfaces• A...

MT90823 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MT90823
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 2,048 ×2,048 channel non-blocking switching at 8.192 Mb/s
• Per-channel variable or constant throughput delay
• Automatic identification of ST-BUS/GCI interfaces
• Accept ST-BUS streams of 2.048, 4.096 or 8.192 Mb/s
• Automatic frame offset delay measurement
• Per-stream frame delay offset programming
• Per-channel high impedance output control
• Per-channel message mode
• Control interface compatible to Motorola non-multiplexed CPUs
• Connection memory block programming
• 3.3V local I/O with 5V tolerant inputs and TTL-compatible outputs
• IEEE-1149.1 (JTAG) Test Port


Application

• Medium and large switching platforms
• CTI application
• Voice/data multiplexer
• Digital cross connects
• ST-BUS/GCI interface functions
• Support IEEE 802.9a standard


Pinout

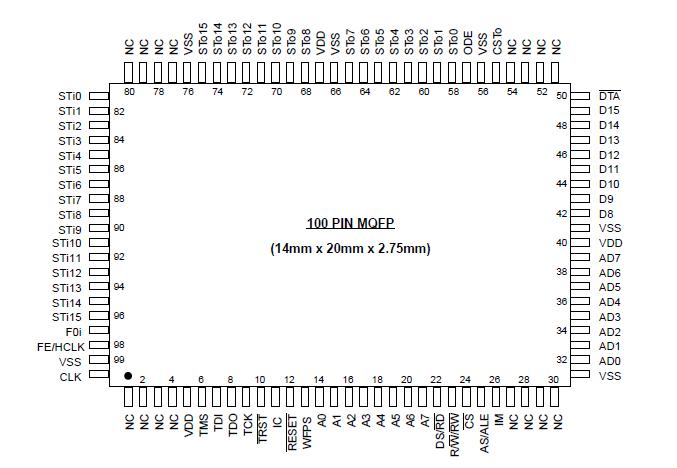

Connection Diagram  Connection Diagram Connection Diagram


Specifications

  Parameter Sym Min Max Units
1 Supply Voltage VDD -0.3 5.0 V
2 Voltage on any 3.3V Tolerant pin I/O (other than supply pins) VI VSS - 0.3 VDD + 0.3 V
3 Voltage on any 5V Tolerant pin I/O (other than supply pins) VI VSS - 0.3 5.5 V
4 Continuous Current at digital outputs Io   20 mA
5 Package power dissipation (PLCC & PQFP) PD   1 W
6 Storage temperature TS - 65 +125



Description

The MT90823 Large Digital Switch has a non-blocking switch capacity of: 2,048 x 2,048 channels at a serial bit rate of 8.192 Mb/s; 1,024 x 1,024 channels at 4.096 Mb/s; and 512 x 512 channels at 2.048 Mb/s. The MT90823 has many features that are programmable on a per stream or per channel basis, including message mode, input offset delay and high impedance output control.

Per stream input delay control of MT90823 is particularly useful for managing large multi-chip switches that transport both voice channel and concatenated data channels.

In addition, the input stream of MT90823 can be individually calibrated for input frame offset using a dedicated pin.
