MT9080B

Features: • 16 bit wide data bus I/O• 16 bit address bus• Microprocessor Interface• 2048 x 16 bit wide memory SRAM• Interfaces with Mitel's MT9085B to form larger switch mitoses• Variable clock and frame ratesApplication• Small and medium digital switch ma...

product image

MT9080B Picture
See larger image
SeekIC No. : 004430216 Detail

MT9080B: Features: • 16 bit wide data bus I/O• 16 bit address bus• Microprocessor Interface• 2048 x 16 bit wide memory SRAM• Interfaces with Mitel's MT9085B to form larger switc...

MT9080B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MT9080B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 16 bit wide data bus I/O
• 16 bit address bus
• Microprocessor Interface
• 2048 x 16 bit wide memory SRAM
• Interfaces with Mitel's MT9085B to form larger switch mitoses
• Variable clock and frame rates


Application

• Small and medium digital switch matrices
• Telephony equipment - PBX, CO equipment, digital cross connect, digital local loop
• Datacom equipment - access concentrators, Lan/Wan gateways

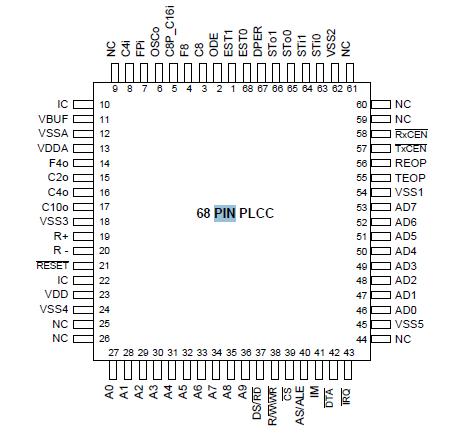

Pinout

Connection Diagram


Specifications

Parameter

Symbol

Min

Max

Units

1

 Supply Voltage VDD-VSS

VDD

- 0.3

7

V

2

 All Input Voltages

Vi

VSS-0.3

VDD + 0.3

V

3

 All Output Voltages

Vo

VSS-0.3

VDD + 0.3

V

4

 Storage Temperature Range

TS

-40

125

5

 Current at Digital Outputs

IO

150

mA

6

 Continuous Power Dissipation

PD

2

W




Description

The MT9080B is a flexible memory module suitable for use as a basic building block in the construction of customized digital switching matrices. MT9080B can be configured as either a Data Memory or a Connection Memory, and is designed to interface with Mitel's MT9085B. Interface to the device is via 16 bit wide data and address busses. The MT9080B can operate with variable clock rates up to 16.7 MHz.
