Features:

• Eight fully independent, T1/E1/J1 framers
• 3.3 V supply with 5 V tolerant inputs
• Selectable 2.048 Mbit/s or 8.192 Mbit/s serial buses for both data and signaling
• Framing Modes:
  - T1: D4, ESF, T1DM
  - E1: Basic Framing, CRC4 multiframing and Signaling Multiframing
• Supports Inverse Mux for ATM
• Timeslot assignable HDLC
• IEEE-1149.1 (JTAG) test port


Application

• T1/E1/J1 add/drop multiplexers
• V5.1 and V5.2 access network interfaces
• CO and PBX equipment interfaces
• Primary rate IDSN nodes
• Digital Cross-connect Systems (DCS)
• Wireless base stations


Pinout

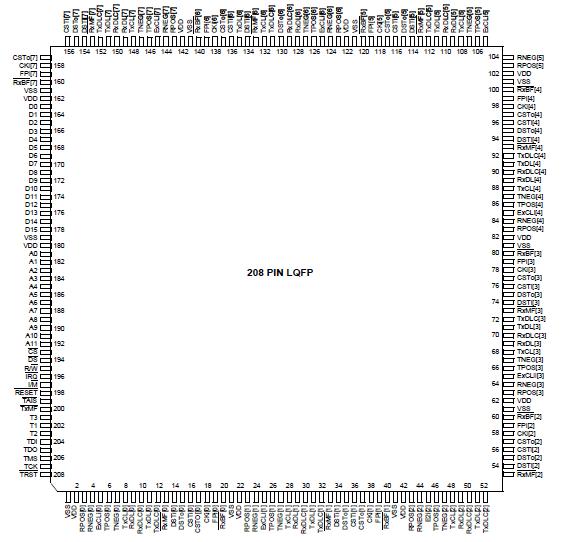

Connection Diagram


Specifications

  Parameter Symbol Min Max Units
1 Supply Voltage VDD -0.3 5.5 V
2 Voltage at Digital Inputs VI -0.3 VDD + 0.3 V
3 Current at Digital Inputs II   30 mA
4 Voltage at Digital Outputs VO -0.3 VDD + 0.3 V
5 Current at Digital Outputs IO   30 mA
6 Storage Temperature TST -65 150

* Voltages are with respect to ground (VSS) unless otherwise stated.
* Exceeding these values may cause permanent damage. Functional operation under these conditions is not implied.


Description

The MT9072AB is a multi-port T1/E1/J1 framing device that integrates eight fully independent, feature rich framers. The device is software selectable between T1, E1 or J1 modes and meets the latest relevant recommendations and standards from Telcordia, ANSI, ETSI and ITU-T. An extensive suite of features make the MT9072AB very flexible and suitable for a wide variety of applications around the globe.
