MT9044

Features: • Supports AT&T TR62411 and Bellcore GR-1244-CORE Stratum 3, Stratum 4 Enhanced and Stratum 4 timing for DS1 interfaces• Supports ITU-T G.812 Type IV clocks for 1,544 kbit/s interfaces and 2,048 kbit/s interfaces• Supports ETSI ETS 300 011, TBR 4, TBR 12 and TBR 13 ...

product image

MT9044 Picture
See larger image
SeekIC No. : 004430186 Detail

MT9044: Features: • Supports AT&T TR62411 and Bellcore GR-1244-CORE Stratum 3, Stratum 4 Enhanced and Stratum 4 timing for DS1 interfaces• Supports ITU-T G.812 Type IV clocks for 1,544 kbit/...

MT9044 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MT9044
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Supports AT&T TR62411 and Bellcore GR-1244-CORE Stratum 3, Stratum 4 Enhanced and Stratum 4 timing for DS1 interfaces
• Supports ITU-T G.812 Type IV clocks for 1,544 kbit/s interfaces and 2,048 kbit/s interfaces
• Supports ETSI ETS 300 011, TBR 4, TBR 12 and TBR 13 timing for E1 interfaces
• Selectable 1.544MHz, 2.048MHz or 8kHz input reference signals
• Provides C1.5, C2, C3, C4, C6, C8, C16, and C19 (STS-3/OC3 clock divided by 8) output clock signals
• Provides 5 different styles of 8 KHz framing pulses
• Holdover frequency accuracy of 0.05 PPM
• Holdover indication
• Attenuates wander from 1.9Hz
• Provides Time Interval Error (TIE) correction
• Accepts reference inputs from two independent sources
• JTAG Boundary Scan


Application

• Synchronization and timing control for multitrunk T1,E1 and STS-3/OC3 systems
• ST-BUS clock and frame pulse sources


Pinout

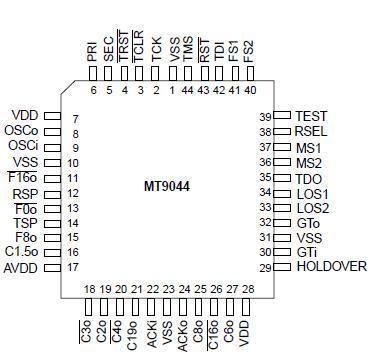

Connection Diagram


Specifications

Parameter Symbol Min. Max. Units
1 Supply Voltage VDD -0.3 7.0 V
2 Voltage on any pin VPIN -0.3 VDD+0.3 V
3 Current on any pin IPIN 20 mA
4 Storage temperature TST -55 125
5 PLCC package power dissipation PPD 900 mW
6 MQFP package power dissipation PPD 900 mW

* Exceeding these values may cause permanent damage. Functional operation under these conditions is not implied.


Description

The MT9044 T1/E1/OC3 System Synchronizer contains a digital phase-locked loop (DPLL), which provides timing and synchronization signals for multitrunk T1 and E1 primary rate transmission links and STS-3/0C3 links.

The MT9044 generates ST-BUS clock and framing signals that are phase locked to either a 2.048MHz, 1.544MHz, or 8kHz input reference.

The MT9044 is compliant with AT&T TR62411 and Bellcore GR-1244-CORE Stratum 3, Stratum 4 Enhanced, and Stratum 4; and ETSI ETS 300 011. It will meet the jitter/wander tolerance, jitter/wander transfer, intrinsic jitter/wander, frequency accuracy, capture range, phase change slope, holdover frequency and MTIE requirements for these specifications.
