MT89L85

Features: • 3.3 volt supply• 5V tolerant inputs and TTL compatible outputs• 256 x 256 channel non-blocking switch• Programmable frame integrity for wideband channels• Automatic identification of ST-BUS/GCI interface backplanes• Per channel tristate control•...

product image

MT89L85 Picture
See larger image
SeekIC No. : 004430142 Detail

MT89L85: Features: • 3.3 volt supply• 5V tolerant inputs and TTL compatible outputs• 256 x 256 channel non-blocking switch• Programmable frame integrity for wideband channels• A...

MT89L85 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MT89L85
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 3.3 volt supply
• 5V tolerant inputs and TTL compatible outputs
• 256 x 256 channel non-blocking switch
• Programmable frame integrity for wideband channels
• Automatic identification of ST-BUS/GCI interface backplanes
• Per channel tristate control
• Patented message mode
• Non-multiplexed microprocessor interface
• Available in PLCC-44 and SSOP-48 packages
• Pin compatible with MT8985 device
• Low power consumption


Application

• Medium size digital switch matrices
• Hyperchannel switching (e.g., ISDN H0)
• ST-BUS/MVIP™ interface functions
• Serial bus control and monitoring
• Centralized voice processing systems
• Data multiplexer


Pinout

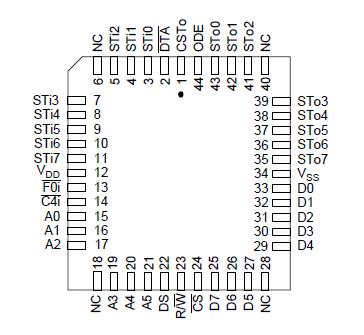

Connection Diagram






Specifications

  Parameter Symbol Min Max Units
1 VDD - VSS   -0.3 5.0 V
2 Voltage on Digital Inputs VI VSS-0.3 VDD+0.3 V
3 Current at Digital Outputs IO   20 mA
4 Storage Temperature TS -55 + 125 °C
5 Package Power Dissipation PD   1 mW
* Exceeding these values may cause permanent damage. Functional operation under these conditions is not implied.


Description

The MT89L85 Enhanced Digital Switch device is an upgraded 3-volt version of the MT8985 Digital Switch. It is pin compatible with the MT8985 and retains all of the MT8985's functionality. The enhanced digital swtich is designed for switching PCM encoded voice or data, under microprocessor control, in digital exchanges, PBXs and any ST-BUS/ MVIP environment. MT89L85 provides simultaneous connections for up to 256 64kb/s channels. Each of the eight serial inputs and outputs consist of 32 64 kbit/s channels multiplexed to form a 2048 kbit/s stream. As the main function in switching applications, the device provides per-channel selection between variable or constant throughput delays. The constant throughput delay feature allows grouped channels such as ISDN H0 to be switched through the device maintaining its sequence integrity. The MT89L85 is ideal for medium sized mixed voice/data switch and voice processing applications.
