MT89L80

Features: • 3.3 volt supply• 5V tolerant inputs and TTL compatible outputs.• 256 x 256 channel non-blocking switch• Accepts serial streams at 2.048Mb/s• Per-channel three-state control• Patented per channel message mode• Non-multiplexed microprocessor inte...

product image

MT89L80 Picture
See larger image
SeekIC No. : 004430141 Detail

MT89L80: Features: • 3.3 volt supply• 5V tolerant inputs and TTL compatible outputs.• 256 x 256 channel non-blocking switch• Accepts serial streams at 2.048Mb/s• Per-channel thr...

MT89L80 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MT89L80
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 3.3 volt supply
• 5V tolerant inputs and TTL compatible outputs.
• 256 x 256 channel non-blocking switch
• Accepts serial streams at 2.048Mb/s
• Per-channel three-state control
• Patented per channel message mode
• Non-multiplexed microprocessor interface
• Mitel ST-BUS compatible
• Low power consumption: typical 15mW
• Pin compatible with the MT8980DP


Application

• Key telephone systems
• PBX systems
• Small and medium voice switching systems


Pinout

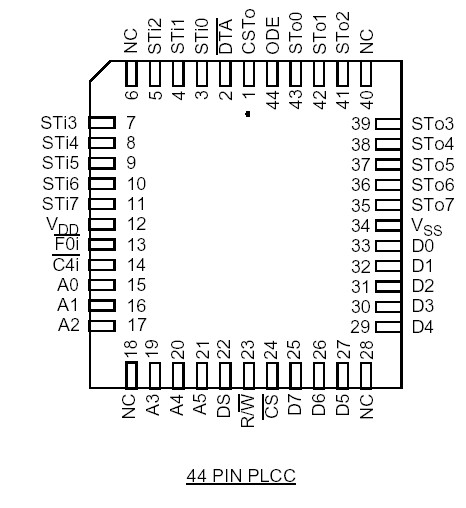

Connection Diagram


Specifications

  Parameter
Symbol
Min
Max
Units
1 Supply Voltage
-0.3
5.0
V
2 Voltage on any I/O pin (except supply pins)
VO
VSS-0.3
VDD+0.3
V
3 Current at Digital Outputs
IO
20
mA
4 Storage Temperature
TS
-55
+125
°C
5 Package Power Dissipation
PD
1
W

* Exceeding these values may cause permanent damage. Functional operation under these conditions is not implied.


Description

This VLSI CMOS device MT89L80 is designed for switching PCM-encoded voice or data, under microprocessor control, in a modern digital exchange, PBX or Central Office. It provides simultaneous connections for up to 256 64 kbit/s channels. Each of the eight serial inputs and outputs of MT89L80 consist of 32 64 kbit/s channels multiplexed to form a 2048 kbit/s ST-BUS stream. In addition, the MT89L80 provides microprocessor read and write access to individual ST-BUS channels.
