MT8985AE

Features: • 256 x 256 channel non-blocking switch• Programmable frame integrity for wideband channels• Automatic identification of ST-BUS/GCI interface backplanes• Per channel tristate control• Patented message mode• Non-multiplexed microprocessor interface̶...

product image

MT8985AE Picture
See larger image
SeekIC No. : 004430135 Detail

MT8985AE: Features: • 256 x 256 channel non-blocking switch• Programmable frame integrity for wideband channels• Automatic identification of ST-BUS/GCI interface backplanes• Per channe...

MT8985AE Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MT8985AE
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 256 x 256 channel non-blocking switch
• Programmable frame integrity for wideband channels
• Automatic identification of ST-BUS/GCI
  interface backplanes
• Per channel tristate control
• Patented message mode
• Non-multiplexed microprocessor interface
• Single +5 volt supply
• Available in DIP-40, PLCC-44 and QFP-44 packages
• Pin compatible with MT8980 device


Application

• Medium size digital switch matrices
• Hyperchannel switching (e.g., ISDN H0)
• ST-BUS/MVIP™interface functions
• Serial bus control and monitoring
• Centralized voice processing systems
• Data multiplexer


Pinout

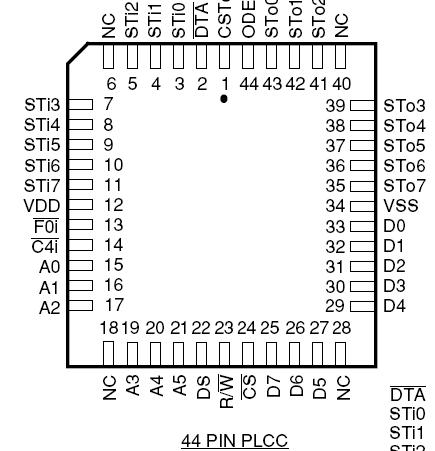

Connection Diagram


Specifications

  Parameter Symbol Min Max Units
1 VDD- VSS   -0.3 7 V
2 Voltage on Digital Inputs VI VSS-0.3 VDD+0.3 V
3 Voltage on Digital Outputs VO VSS-0.3 VDD+0.3 V
4 Current at Digital Outputs LO   40 mA
5 Storage Temperature TS -65 +150 °C
6 Package Power Dissipation PD   2 W



Description

The MT8985AE Enhanced Digital Switch device is an upgraded version of the popular MT8980D Digital Switch (DX). It is pin compatible with the MT8980D and retains all of the MT8980D's functionality. This VLSI device is designed for switching PCM-encoded voice or data, under microprocessor control, in digital exchanges, PBXs and any ST-BUS/MVIP environment. MT8985AE provides simultaneous connections for up to 256 64kb/s channels. Each of the eight serial inputs and outputs consist of 32 64 kbit/s channels multiplexed to form a 2048 kbit/s stream. As the main function in switching applications, the device provides per-channel selection between variable or constant throughput delays. The constant throughput delay feature allows grouped channels such as ISDN H0 to be switched through the device aintaining its sequence integrity. The MT8985AE is deal for medium sized mixed voice/data switch and oice processing applications.
