MT8981DE

Features: • Zarlink ST-BUS compatible• 4-line x 32-channel inputs• 4-line x 32-channel outputs• 128 ports non-blocking switch• Single power supply (+5 V)• Low power consumption: 30 mW Typ.• Microprocessor-control interface• Three-state serial outputs...

product image

MT8981DE Picture
See larger image
SeekIC No. : 004430130 Detail

MT8981DE: Features: • Zarlink ST-BUS compatible• 4-line x 32-channel inputs• 4-line x 32-channel outputs• 128 ports non-blocking switch• Single power supply (+5 V)• Low pow...

MT8981DE Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MT8981DE
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Zarlink ST-BUS compatible
• 4-line x 32-channel inputs
• 4-line x 32-channel outputs
• 128 ports non-blocking switch
• Single power supply (+5 V)
• Low power consumption: 30 mW Typ.
• Microprocessor-control interface
• Three-state serial outputs

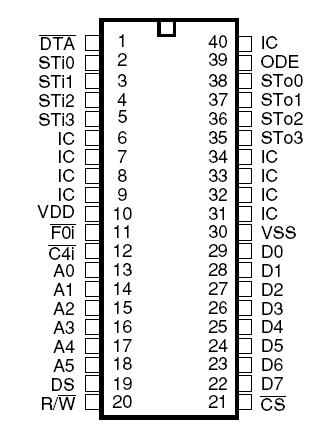

Pinout






Specifications

Parameter Symbol Min Max Units
1 VDD- VSS -0.3 7 V
2 Voltage on Digital Inputs VI VSS-0.3 VDD+0.3 V
3 Voltage on Digital Outputs VO VSS-0.3 VDD+0.3 V
4 Current at Digital Outputs LO 40 mA
5 Storage Temperature TS -65 +150 °C
6 Package Power Dissipation PD 2 W





Description

The MT8981DE is designed as the VLSI ISO-CMOS device that provides microprocessor read and write access to individual ST-BUS channels. Features of this MT8981DE are:(1)Mitel ST-BUS compatible; (2)4-line x 32-channel inputs; (3)4-line x 32-channel outputs; (4)128 ports non-blocking switch; (5)Single power supply (+5 V); (6)Low power consumption: 30 mW Typ.; (7)Microprocessor-control interface; (8)Three-state serial outputs.

The absolute maximum ratings of the MT8981DE can be summarized as:(1)VDD - VSS: -0.3 to 7 V;(2)Voltage on Digital Inputs: VSS-0.3 to VDD+0.3 V;(3)Voltage on Digital Outputs: VSS-0.3 to VDD+0.3 V;(4)Current at Digital Outputs: 40 mA;(5)Storage Temperature: -65 to +150 °C;(6)Package Power Dissipation: 2 W. If you want to know more information about MT8981DE, please download the datasheet in www.seekic.com or www.chinaicmart.com .
