MT8979AE

Features: • Single chip primary rate 2048 kbit/s CEPT transceiver with CRC-4 option• Meets CCITT Recommendation G.704• Selectable HDB3 or AMI line code• Tx and Rx frame and multiframe synchronization signals• Two frame elastic buffer with 32 msec jitter buffer• ...

product image

MT8979AE Picture
See larger image
SeekIC No. : 004430123 Detail

MT8979AE: Features: • Single chip primary rate 2048 kbit/s CEPT transceiver with CRC-4 option• Meets CCITT Recommendation G.704• Selectable HDB3 or AMI line code• Tx and Rx frame and m...

MT8979AE Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MT8979AE
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single chip primary rate 2048 kbit/s CEPT transceiver with CRC-4 option
• Meets CCITT Recommendation G.704
• Selectable HDB3 or AMI line code
• Tx and Rx frame and multiframe synchronization signals
• Two frame elastic buffer with 32 msec jitter buffer
• Frame alignment and CRC error counters
• Insertion and detection of A, B, C, D signalling bits with optional debounce
• On-chip attenuation ROM with option for ADI codecs
• Per channel, overall and remote loop around
• ST-BUS compatible


Application

• Primary rate ISDN network nodes
• Multiplexing equipment
• Private network: PBX to PBX links
• High speed computer to computer links


Pinout

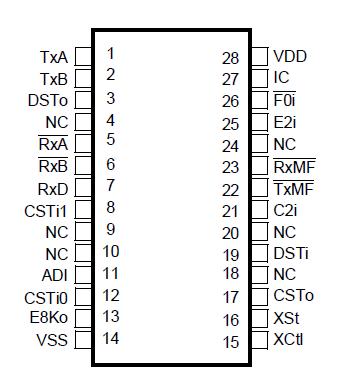

Connection Diagram


Specifications


Parameter
Symbol
Min
Max
Units
1 Supply Voltage
VDD
-0.3
7
V
2 Voltage at Digital Inputs
VI
-0.3
VDD + 0.3
V
3 Current at Digital Inputs
II
30
mA
4 Voltage at Digital Outputs
VO
-0.3
VDD + 0.3
V
5 Current at Digital Outputs
IO
30
mA
6 Storage Temperature
TST
-65
150
°C
7 Package Power Dissipation
P
800
mW



Description

The MT8979AE is a single chip CEPT digital trunk transceiver that meets the requirements of CCITT Recommendation G.704 for digital multiplex equipment.

The MT8979AE is fabricated in Mitel's low power ISO-CMOS technology.
