MT8977AE

Features: • D3/D4 or ESF framing and SLC-96 compatible• Two frame elastic buffer with jitter tolerance improved to 156 UI• Insertion and detection of A, B, C, D bits, signalling freeze, optional debounce• Selectable B8ZS, jammed bit (ZCS) or no zero code suppression• ...

product image

MT8977AE Picture
See larger image
SeekIC No. : 004430120 Detail

MT8977AE: Features: • D3/D4 or ESF framing and SLC-96 compatible• Two frame elastic buffer with jitter tolerance improved to 156 UI• Insertion and detection of A, B, C, D bits, signalling fr...

MT8977AE Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MT8977AE
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• D3/D4 or ESF framing and SLC-96 compatible
• Two frame elastic buffer with jitter tolerance
  improved to 156 UI
• Insertion and detection of A, B, C, D bits,
  signalling freeze, optional debounce
• Selectable B8ZS, jammed bit (ZCS) or no zero
  code suppression
• Yellow alarm and blue alarm signal capabilities
• Bipolar violation count, FTerror count, CRCerror count
• Selectable
  robbed bit signalling
• Frame and superframe sync. signals, Tx and Rx
• AMI encoding and decoding
• Per channel, overall, and remote loop around
• Digital phase detector between T1 line and STBUS
• One uncommitted scan point and drive point
• Pin compatible with MT8976 and MT8979
• ST-BUS compatible


Pinout

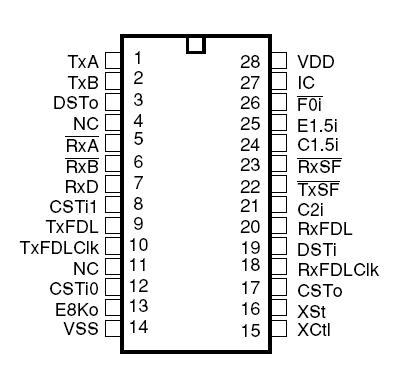

Connection Diagram


Specifications

Parameter Symbol Min MAX Units
1 DC Power Supply Voltage VDD -0.3 7 V
2 Voltage on any pin (other than supply)   Vss-0.3 VDD+0.3 V
3 Current at any pin (other than supply)   40 mA
4 Storage Temperature TST -55 125 °C
5 Package Power Dissipation P 800 mW



Description

The MT8977AE is a variant of the MT8976 framer,which has been enhanced to meet ACCUNET® T1.5 wander tolerance (138 UI). The MT8977AE meets ESF and D3/D4 formats, and is compatible with SLC-96 systems.
