MT8952B

Features: • Formats data as per X.25 (CCITT) level-2 standards• Go-Ahead sequence generation and detection• Single byte address recognition• Microprocessor port and directly accessible registers for flexible operation and control• 19 byte FIFO in both send and receive...

product image

MT8952B Picture
See larger image
SeekIC No. : 004430104 Detail

MT8952B: Features: • Formats data as per X.25 (CCITT) level-2 standards• Go-Ahead sequence generation and detection• Single byte address recognition• Microprocessor port and directly ...

MT8952B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MT8952B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Formats data as per X.25 (CCITT) level-2 standards
• Go-Ahead sequence generation and detection
• Single byte address recognition
• Microprocessor port and directly accessible registers for flexible operation and control
• 19 byte FIFO in both send and receive paths
• Handshake signals for multiplexing data links
• High speed serially clocked output (2.5 Mbps)
• ST-BUS compatibility with programmable channel selection for data and separate timeslot for control information
• Independent watchdog timer
• Facility to disable protocol functions
• Low power ISO-CMOS technology


Application

• Data link controllers and protocol generators
• Digital sets, PBXs and private packet networks
• D-channel controller for ISDN basic access
• C-channel controller to Digital Network Interface Circuits (typically MT8972)
• Interprocessor communication

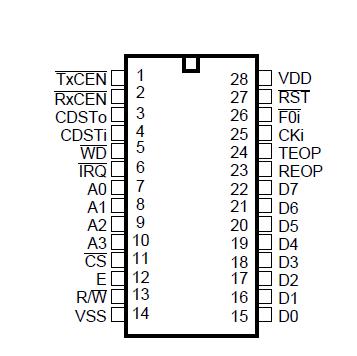

Pinout

Connection Diagram


Specifications


Parameter
Symbol
Min
Max
Units
1
 Supply voltage
VDD
-0.3
7.0
V
2
 2 Voltage on any pin (other than supply pins)
VI
VSS-0.3
VDD+0.3
V
3
 Current on any pin (other than supply pins)
II / IO

±25
mA
4
 DC Supply or ground current
IDD / ISS

±50
mA
5
 Storage temperature
TST
-65
150
°C
6
 Package power dissipation     Cerdip
                                               Plastic
PD
PD

1.0
0.6
W
W



Description

The MT8952B HDLC Protocol Controller frames and formats data packets according to X.25 (Level 2) Recommendations from the CCITT.
