MT4C16270

Features: • Industry-standard x16 pinouts, timing, functions and packages• High-performance CMOS silicon-gate process• Single +5V ±10% power supply*• Low power, 3mW standby; 300mW active, typical• All device pins are TTL-compatible• 512-cycle refresh in 8ms (9 r...

product image

MT4C16270 Picture
See larger image
SeekIC No. : 004429880 Detail

MT4C16270: Features: • Industry-standard x16 pinouts, timing, functions and packages• High-performance CMOS silicon-gate process• Single +5V ±10% power supply*• Low power, 3mW standby; ...

MT4C16270 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MT4C16270
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Industry-standard x16 pinouts, timing, functions and packages
• High-performance CMOS silicon-gate process
• Single +5V ±10% power supply*
• Low power, 3mW standby; 300mW active, typical
• All device pins are TTL-compatible
• 512-cycle refresh in 8ms (9 row- and 9 column addresses)
• Refresh modes: RAS#-ONLY, CAS#-BEFORE-RAS# (CBR) and HIDDEN
• Extended Data-Out (EDO) PAGE MODE access cycle
• BYTE WRITE and BYTE READ access cycles


Pinout

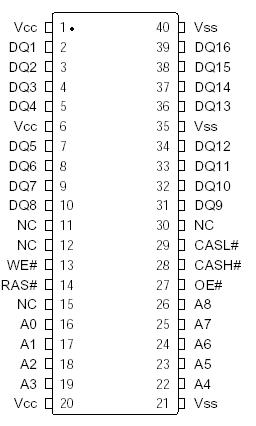

Connection Diagram


Specifications

Voltage on any pin Relative to VSS ..................... -1V to +7V
Operating Temperature, TA (ambient) ......... 0°C to +70°C
Storage Temperature (plastic) ............... -55°C to +150°C
Power Dissipation ....................................................... 1.2W
Short Circuit Output Current ...................................... 50mA
*Stresses greater than those listed under "Absolute Maximum
Ratings" may cause permanent damage to the device.
This is a stress rating only and functional operation of the
device at these or any other conditions above those indicated
in the operational sections of this specification is not
implied. Exposure to absolute maximum rating conditions
for extended periods may affect reliability.
