MT48LC4M32LFFC

Features: • Temperature Compensated Self Refresh (TCSR)• Fully synchronous; all signals registered on positive edge of system clock• Internal pipelined operation; column address can be changed every clock cycle• Internal banks for hiding row access/precharge• Programm...

product image

MT48LC4M32LFFC Picture
See larger image
SeekIC No. : 004429850 Detail

MT48LC4M32LFFC: Features: • Temperature Compensated Self Refresh (TCSR)• Fully synchronous; all signals registered on positive edge of system clock• Internal pipelined operation; column address ca...

MT48LC4M32LFFC Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MT48LC4M32LFFC
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Temperature Compensated Self Refresh (TCSR)
• Fully synchronous; all signals registered on positive edge of system clock
• Internal pipelined operation; column address can be changed every clock cycle
• Internal banks for hiding row access/precharge
• Programmable burst lengths: 1, 2, 4, 8, or full page
• Auto Precharge, includes CONCURRENT AUTO PRECHARGE, and Auto Refresh Modes
• Self Refresh Mode; standard and low power
• 64ms, 4,096-cycle refresh
• LVTTL-compatible inputs and outputs
• Low voltage power supply
• Partial Array Self Refresh power-saving mode
• Operating Temperature Range Industrial (-40oC to +85oC)

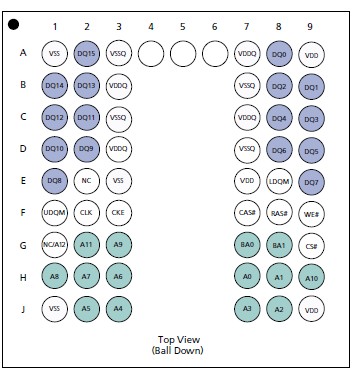

Pinout

Connection Diagram


Specifications

Voltage on VDD/VDDQ Supply Relative to VSS(3.3V) ................................................... -1V to +4.6V
Relative to VSS(2.5V) ............................................................................................... -0.5V to +3.6V
Voltage on Inputs, NC or I/O Pins Relative to VSS(3.3V) ............................................. -1V to +4.6V
Relative to VSS(2.5V) ................................................................................................ -0.5V to +3.6V
Operating Temperature,TA (Industrial) ................................................................... -40°C to +85°C
Storage Temperature (plastic) .............................................................................. -55°C to +150°C
Power Dissipation ........................................................................................................................1W
