MT48LC16M16A2P-75IT

PinoutSpecificationsDescriptionThe MT48LC16M16A2P-75IT is one member of the MT48LC16M16 family which is designed as the high-speed CMOS, dynamic random-access memory device that has some points of features:(1)PC100- and PC133-compliant; (2)Fully synchronous; all signals registered on positive edge...

product image

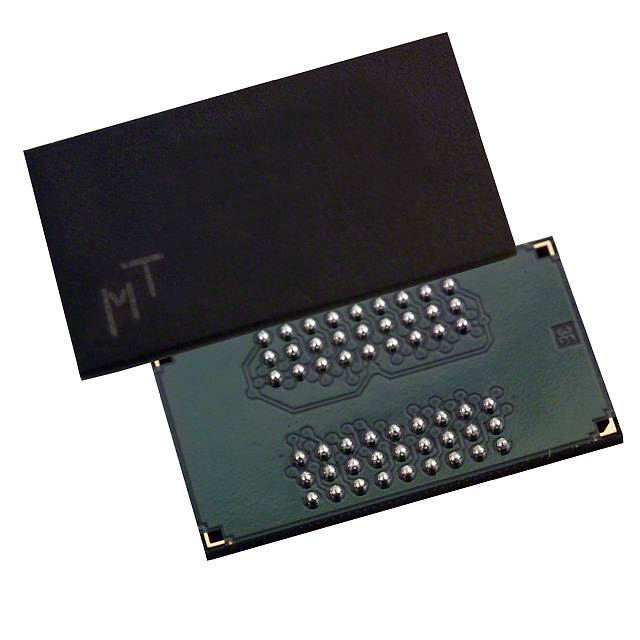

MT48LC16M16A2P-75IT Picture
SeekIC No. : 004429819 Detail

MT48LC16M16A2P-75IT: PinoutSpecificationsDescriptionThe MT48LC16M16A2P-75IT is one member of the MT48LC16M16 family which is designed as the high-speed CMOS, dynamic random-access memory device that has some points of f...

floor Price/Ceiling Price

Part Number:
MT48LC16M16A2P-75IT
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

  Connection Diagram


Specifications

  Connection Diagram


Description

The MT48LC16M16A2P-75IT is one member of the MT48LC16M16 family which is designed as the high-speed CMOS, dynamic random-access memory device that has some points of features:(1)PC100- and PC133-compliant; (2)Fully synchronous; all signals registered on positive edge of system clock; (3)Internal, pipelined operation; column address can be changed every clock cycle; (4)Internal banks for hiding row access/precharge; (5)Programmable burst lengths: 1, 2, 4, 8, or full page; (6)Auto precharge, includes concurrent auto precharge and auto refresh modes; (7)Self refresh mode (not available on AT devices); (8)Auto refresh: 64ms, 8192-cycle (commercial and industrial) and 16ms, 8192-cycle (automotive); (9)LVTTL-compatible inputs and outputs; (10)Single +3.3V ?.3V power supply.

This MT48LC16M16A2P-75IT is internally configured as a quad-bank DRAM with a synchronous interface (all signals are registered on the positive edge of the clock signal, CLK), and provides for programmable read or write burst lengths (BL) of 1, 2, 4, or 8 locations, or the full page, with a burst terminate option.

The absolute maximum ratings of the MT48LC16M16A2P-75IT can be summarized as:(1)Voltage on VDD/VDDQ supply relative to VSS: -1 to 4.6 V;(2)Voltage on inputs, NC, or I/O balls relative to VSS: -1 to 4.6 V;(3)Storage temperature (plastic): 55 to +150 °C;(4)Power dissipation: 1 W. If you want to know more information such as the electrical characteristics about MT48LC16M16A2P-75IT, please download the datasheet in www.seekic.com or www.chinaicmart.com.
