Product Details

Description



Features:

Common Features of MSP 34x5D
· Dolby Pro Logic together with DPL 351xA
· Analog sound IF input
· No external filters required
· Stereo baseband input via integrated A/D converters
· Two pairs of D/A converters
·Two carrier FM
· I2S Interface for version B3 and later versions
· AVC: Automatic Volume Correction




Specifications

Symbol
Parameter
Pin Name
Min.
Max.
Unit
TA
 Ambient Operating Temperature
0
701)
TS
 Storage Temperature
-40
125
VSUP1
 First Supply Voltage
AHVSUP
-0.3
9.0
V
VSUP2
 Second Supply Voltage
DVSUP
-0.3
6.0
V
VSUP3
 Third Supply Voltage
AVSUP
-0.3
6.0
V
dVSUP23
 Voltage between AVSUP
and DVSUP
AVSUP,DVSUP
-0.5
0.5
V
PTOT
 Package Power Dissipation
PSDIP64
PSDIP52
PQFP80
PLQFP64
PMQFP44
AHVSUP,
DVSUP,
AVSUP
1200
1300
1200
1000
9601)
mW
mW
mW
mW
mW
VIdig
 Input Voltage, all Digital Inputs
-0.3
VSUP2+ 0.3
V
IIdig
 Input Current, all Digital Pins
-20
+20
mA2)
VIana
 Input Voltage, all Analog Inputs
SCn_IN_s,MONO_IN3)
-0.3
VSUP2+ 0.3
V
IIana
 Input Current, all Analog Inputs

SCn_IN_s,MONO_IN3)
-5
+5
mA2)
IOana
 Output Current, all SCART Outputs

SC1_OUT_s3)
4) 5)
,
4) 5)
,
IOana
 Output Current, all Analog Outputs
except SCART Outputs
DACM_s3)
4)
4)
ICana
 Output Current, other pins
connected to capacitors
CAPL_M3), AGNDC
4)
4)


1)For PMQFP44 package, max. ambient operating temperature is 65 °C.
2)positive value means current flowing into the circuit
3)"n" means "1" or "2",     "s" means "L" or "R"
4)The Analog Outputs are short circuit proof with respect to First Supply Voltage and Ground.
5)Total chip power dissipation must not exceed absolute maximum rating.
Stresses beyond those listed in the "Absolute Maximum Ratings" may cause permanent damage to the device. This
is a stress rating only. Functional operation of the device at these or any other conditions beyond those indicated in the "Recommended Operating Conditions/Characteristics" of this specification is not implied. Exposure to absolute maxi-mum ratings conditions for extended periods may affect device reliability.




Description

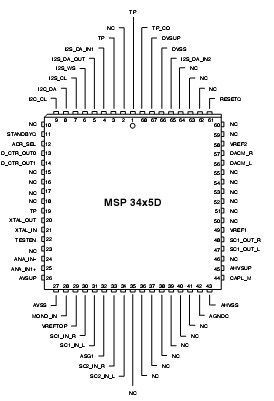

Connection Diagram
