Product Details

Description



Pinout

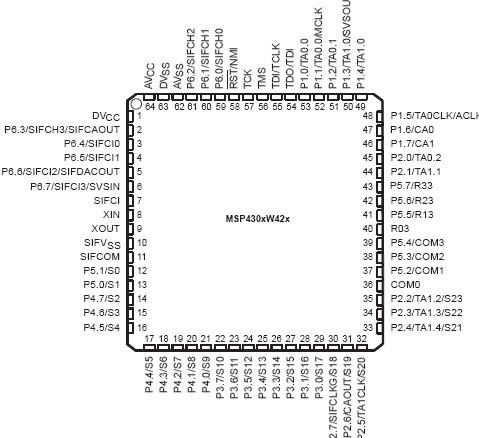

Connection Diagram


Specifications

Voltage applied at VCC to VSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.3 V to + 4.1 V
Voltage applied to any pin (see Note) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.3 V to VCC + 0.3 V
Diode current at any device terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±2 mA
Storage temperature (unprogrammed device) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −55°C to 150°C
Storage temperature (programmed device) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −40°C to 85°C


Description

The Texas Instruments MSP430xW42x ultralow power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The MSP430xW42x features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency.

The digitally controlled oscillator (DCO) of MSP430xW42x allows wake-up from low-power modes to active mode in less than 6s. The MSP430xW42x series are microcontroller configurations with two built-in 16-bit timers, a comparator, 96 LCD segment drive capability, a scan interface, and 48 I/O pins.

Typical applications of MSP430xW42x include sensor systems that capture analog signals, convert them to digital values, and process the data and transmit them to a host system. The comparator and timers of MSP430xW42x make the configurations ideal for gas, heat, and water meters, industrial meters, counter applications, handheld meters, etc.
