Features: ` Low Supply-Voltage Range, 1.8 V to 3.6 V
`Ultra-Low Power Consumption:
-- Active Mode: 270 A at 1 MHz, 2.2 V
-- Standby Mode (VLO): 0.3 A
-- Off Mode (RAM Retention): 0.1 A
`Ultra-Fast Wake-Up From Standby Mode in Less Than 1 s
`16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time
` Basic Clock Module Configurations:
-- Internal Frequencies up to 16 MHz
-- Internal Very Low Power LF Oscillator
-- 32-kHz Crystal
-- Internal Frequencies up to 16 MHz With Four Calibrated Frequencies to ±1%
-- Resonator
-- External Digital Clock Source
-- External Resistor
` 12-Bit Analog-to-Digital (A/D) Converter With Internal Reference, Sample-and-Hold, and Autoscan Feature
` 16-Bit Timer_A With Three Capture/Compare Registers
`16-Bit Timer_B With Seven Capture/Compare-With-Shadow Registers
` Four Universal Serial Communication Interfaces (USCI)
-- USCI_A0 and USCI_A1
-- Enhanced UART Supporting Auto-Baudrate Detection
-- IrDA Encoder and Decoder
-- Synchronous SPI
-- USCI_B0 and USCI_B1
-- I2Ct
-- Synchronous SPI
`On-Chip Comparator
` Supply Voltage Supervisor/Monitor With Programmable Level Detection
` Brownout Detector
` Bootstrap Loader
`Serial Onboard Programming, No External Programming Voltage Needed,
Programmable Code Protection by Security Fuse
`Family Members Include:
-- MSP430F233 8KB+256B Flash Memory, 1KB RAM
-- MSP430F235 16KB+256B Flash Memory, 2KB RAM
-- MSP430F247, MSP430F2471† 32KB+256B Flash Memory, 4KB RAM
-- MSP430F248, MSP430F2481† 48KB+256B Flash Memory, 4KB RAM
-- MSP430F249, MSP430F2491† 60KB+256B Flash Memory, 2KB RAM
-- MSP430F2410 56KB+256B Flash Memory, 4KB RAM
`Available in 64-Pin QFP and 64-Pin QFN Packages (See Available Options)

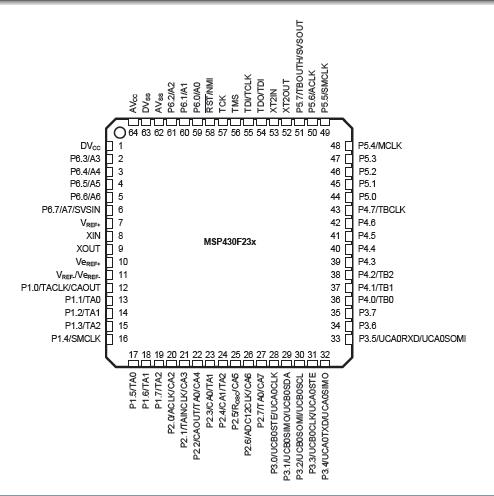

`For Complete Module Descriptions, See MSP430x2xx Family User's Guide, Literature Number SLAU144Pinout
SpecificationsVoltage applied at VCC to VSS . . . . . . . . . . . . . . . . . . . . . . . . . . . --0.3 V to 4.1 V
Voltage applied to any pin‡ . . . . . . . . . . . . . . . .. . . . . . . . --0.3 V to VCC + 0.3 V
Diode current at any device terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±2 mA
Storage temperature§, Tstg:Unprogrammed device . . . . . . . .--55°C to 150°C
Programmed device . . . . . . . . . . .--40°C to 105°C
† Stresses beyond those listed under "absolutemaximum ratings"may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
‡ All voltages referenced to VSS. The JTAG fuse-blow voltage, VFB, is allowed to exceed the absolute maximum rating. The voltage is applied to the TDI/TCLK pin when blowing the JTAG fuse.
§ Higher temperature may be applied during board soldering process according to the current JEDEC J-STD-020 specification with peak reflow temperatures not higher than classified on the device label on the shipping boxes or reels.
DescriptionThe Texas Instruments MSP430x23x ultra-low power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portablemeasurement applications. The MSP430x23x features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The calibrated digitally controlled oscillator (DCO) of MSP430x23x allows wake-up from low-power modes to active mode in less than 1 s.
The MSP430x23x series are microcontroller configurations with two built-in 16-bit timers, a fast 12-bit A/D converter (not MSP430F24x1), a comparator, four (two in MSP430F23x) universal serial communication interface (USCI) modules, and up to 48 I/O pins. The MSP430F24x1 devices are identical to the MSP430F24x devices, with the exception that the ADC12 module is not implemented. The MSP430x23x devices are identical to theMSP430F24x devices,with the exception that a reduced Timer B, one USCI module, and less RAM is integrated.
Typical applications of MSP430x23x include sensor systems, industrial control applications, hand-held meters, etc.
MSP430x23x Data Sheet
