MSP430x11x2

Features: Low Supply Voltage Range 1.8 V 3.6 V Ultralow-Power Consumption: Active Mode: 200 A at 1 MHz, 2.2 V Standby Mode: 0.7 A Off Mode (RAM Retention): 0.1 A Five Power Saving Modes Wake-Up From Standby Mode in 6 s 16-Bit RISC Architecture, 125 ns Instruction Cycle Time Basic Clock Module ...

product image

MSP430x11x2 Picture
See larger image
SeekIC No. : 004429327 Detail

MSP430x11x2: Features: Low Supply Voltage Range 1.8 V 3.6 V Ultralow-Power Consumption: Active Mode: 200 A at 1 MHz, 2.2 V Standby Mode: 0.7 A Off Mode (RAM Retention): 0.1 A Five Power Saving Modes Wake-Up ...

MSP430x11x2 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSP430x11x2
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Low Supply Voltage Range 1.8 V 3.6 V
Ultralow-Power Consumption:
    Active Mode: 200 A at 1 MHz, 2.2 V
     Standby Mode: 0.7 A
    Off Mode (RAM Retention): 0.1 A
Five Power Saving Modes
Wake-Up From Standby Mode in 6 s
16-Bit RISC Architecture, 125 ns Instruction Cycle Time
Basic Clock Module Configurations:
    Various Internal Resistors
    Single External Resistor
    32-kHz Crystal
    High Frequency Crystal
    Resonator
    External Clock Source
16-Bit Timer_A With Three Capture/Compare Registers
10-Bit, 200-ksps A/D Converter With Internal Reference, Sample-and-Hold, Autoscan, and Data Transfer Controller
Serial Communication Interface (USART) With Software-Selectable Asynchronous UART or Synchronous SPI (MSP430x12x2 Only)
Serial Onboard Programming, No External Programming Voltage Needed Programmable Code Protection by Security Fuse
Supply Voltage Brownout Protection
MSP430x11x2 Family Members Include:
    MSP430F1122: 4KB + 256B Flash Memory 256B RAM
    MSP430F1132: 8KB + 256B Flash Memory 256B RAM
    Available in 20-Pin Plastic SOWB and 20-Pin Plastic TSSOP Packages
MSP430x12x2 Family Members Include:
    MSP430F1222: 4KB + 256B Flash Memory 256B RAM
    MSP430F1232: 8KB + 256B Flash Memory 256B RAM
    Available in 28-Pin Plastic SOWB and 28-Pin Plastic TSSOP Packages
 For Complete Module Descriptions, See the MSP430x1xx Family User's Guide, Literature Number SLAU049

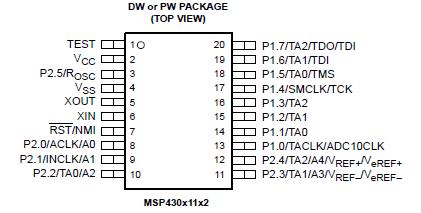

Pinout

Connection Diagram


Specifications

Voltage applied at VCC to VSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 4.1 V
Voltage applied to any pin (referenced to VSS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to VCC + 0.3 V
Diode current at any device terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±2 mA
Storage temperature, Tstg (unprogrammed device) . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . 55°C to 150°C
Storage temperature, Tstg (programmed device) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40°C to 85°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE: All voltages referenced to VSS.


Description

The Texas Instruments MSP430x11x2 ultralow-power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The MSP430x11x2 features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator (DCO) of MSP430x11x2 allows wake-up from low-power modes to active mode in less than 6s.

The MSP430x11x2 series are ultralow-power mixed signal microcontrollers with a built-in 16-bit timer, 10-bit A/D converter with integrated reference and data transfer controller (DTC) and fourteen or twenty-two I/O pins. In addition, the MSP430x12x2 series microcontrollers have built-in communication capability using asynchronous (UART) and synchronous (SPI) protocols.

Digital signal of MSP430x11x2 processing with the 16-bit RISC performance enables effective system solutions such as glass breakage detection with signal analysis (including wave digital filter algorithm). Another area of application is in stand-alone RF sensors.
