Features:

Low Supply Voltage Range 2.5 V 5.5 V
Ultralow-Power Consumption:
   Active Mode: 330 A at 1 MHz, 3 V
   Standby Mode: 1.5 A
   Off Mode (RAM Retention): 0.1 A
Wake-up From Standby Mode in 6 s Maximum
16-Bit RISC Architecture, 200 ns Instruction Cycle Time
Basic Clock Module Configurations:
   Various Internal Resistors
   Single External Resistor
   32 kHz Crystal
   High Frequency Crystal
   Resonator
   External Clock Source
16-Bit Timer_A With Three Capture/Compare Registers
Serial Onboard Programming
Program Code Protection by Security Fuse
Family Members Include:
   MSP430C111: 2k Byte ROM,128 Byte RAM
   MSP430C112: 4k Byte ROM, 256 Byte RAM
   MSP430P112: 4k Byte OTP, 256 Byte RAM
EPROM Version Available for Prototyping:
   PMS430E112: 4k Byte EPROM, 256 Byte RAM
Available in a 20-Pin Plastic Small-Outline Wide Body (SOWB) Package, 20-Pin Ceramic Dual-In-Line (CDIP) Package(EPROM Only)
For Complete Module Descriptions, Refer to the MSP430x1xx Family User's Guide, Literature Number SLAU049


Pinout

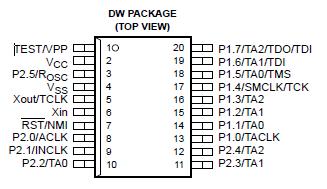

Connection Diagram


Specifications

Voltage applied at VCC to VSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . 0.3 V to 6 V
Voltage applied to any pin (referenced to VSS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to VCC+0.3 V
Diode current at any device terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . ±2 mA
Storage temperature, Tstg (unprogrammed device) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55°C to 150°C
Storage temperature, Tstg (programmed device) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40°C to 85°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE: All voltages referenced to VSS.


Description

The Texas Instruments MSP430x11x ultralow power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The MSP430x11x features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator (DCO) of MSP430x11x allows wake-up from low-power modes to active mode in less than 6s.

The MSP430x11x series is an ultra low-power mixed signal microcontroller with a built in 16-bit timer and  fourteen I/O pins.

Typical applications of MSP430x11x include sensor systems that capture analog signals, convert them to digital values, and then process the data and display them or transmit them to a host system. Stand alone RF sensor front-end is another area of application.
