MSP430X13X

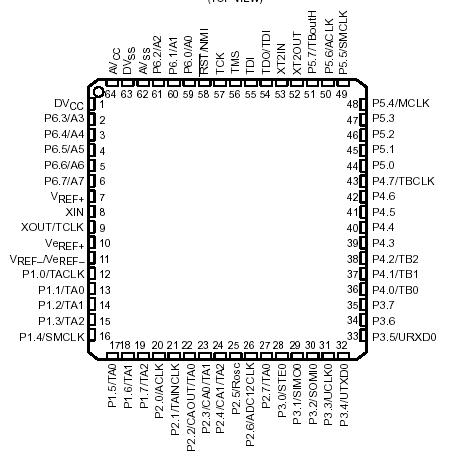

Voltage applied at V_CC to V_SS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .  . . .0.3 V to + 4.1 V
Voltage applied to any pin (referenced to V_SS) . . . . . . . . . . . . . . . . . . . .0.3 V to VCC+0.3 V
Diode current at any device terminal .  . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . .±2 mA
Storage temperature (unprogrammed device)  . . . . . . . . . . . . . . . . . . .. . . . .55°C to 150°C
Storage temperature (programmed device)  . . . . . . . . . . . . . . . . . . . . . .  . . . .40°C to 85°C

The Texas Instruments MSP430X13X ultralow-power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The MSP430X13X features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator (DCO) of MSP430X13X allows wake-up from low-power modes to active mode in less than 6 µs.

The MSP430X13X series are microcontroller configurations with two built-in 16-bit timers, a fast 12-bit A/D converter, one or two universal serial synchronous/asynchronous communication interfaces (USART), and 48 I/O pins.

Typical applications of MSP430X13X  include sensor systems that capture analog signals, convert them to digital values, and process and transmit the data to a host system. The timers make the configurations ideal for industrial control applications such as ripple counters, digital motor control, EE-meters, hand-held meters, etc. The hardware multiplier of MSP430X13X enhances the performance and offers a broad code and hardware-compatible family solution.
