MSP430F2013IPW

Operating Temperature Range :
Core : MSP430
Data Bus Width : 16 bit
On-Chip ADC : Yes
Operating Supply Voltage : 1.8 V to 3.6 V
Mounting Style : SMD/SMT
Processor Series : 2 Series
Maximum Clock Frequency : 16 MHz
Package / Case : TSSOP-14
Program Memory Size : 2 KB
Data RAM Size : 128 B

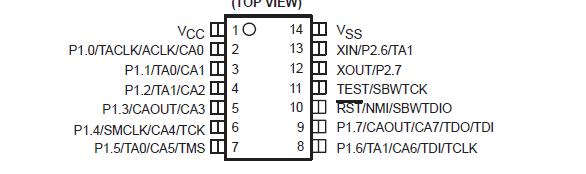

Pinout




Specifications

Voltage applied at V_CC to V_SS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . −0.3 V to 4.1 V
Voltage applied to any pin (see Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . −0.3 V to V_CC+0.3 V
Diode current at any device terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . ±2 mA
Storage temperature, T_stg (unprogrammed device, see Note 3) . . . . . . . . . . . . . . . . . . . . . . . . −55°C to 150°C
Storage temperature, T_stg (programmed device, see Note 3) . . . . . . . . . . . . . . . . . . . . . . . . . . . −40°C to 85°C

NOTES: 1. Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
2. All voltages referenced to V_SS. The JTAG fuse-blow voltage, V_FB, is allowed to exceed the absolute maximum rating. The voltage is applied to the TEST pin when blowing the JTAG fuse.
3. Higher temperature may be applied during board soldering process according to the current JEDEC J−STD−020 specification with peak reflow temperatures not higher than classified on the device label on the shipping boxes or reels.


Description

The Texas Instruments MSP430F2013IPW ultralow power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The MSP430F2013IPW features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator (DCO) of MSP430F2013IPW allows wake-up from low-power modes to active mode in less than 1s.

The MSP430F2013IPW is an ultralow-power mixed signal microcontroller with a built-in 16-bit timer, and ten I/O pins. In addition the MSP430F2013IPW has a versatile analog comparator. The MSP430x20x2 and MSP430x20x3 have built-in communication capability using synchronous protocols (SPI or I2C), and a 10-bit A/D converter (MSP430x20x2) or a 16-bit sigma-delta A/D converter (MSP430x20x3).

Typical applications of MSP430F2013IPW include sensor systems that capture analog signals, convert them to digital values, and then process the data for display or for transmission to a host system. Stand alone RF sensor front end is another area of application.

Parameters:

Technical/Catalog Information	MSP430F2013IPW
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Program Memory Size	2KB (2K x 8 + 256B)
RAM Size	128 x 8
Number of I /O	10
Package / Case	14-TSSOP
Speed	16MHz
Controller Series	MSP430
Oscillator Type	Internal
Packaging	Tube
Program Memory Type	FLASH
EEPROM Size	-
Core Processor	RISC
Data Converters	A/D 10x16b
Core Size	16-Bit
Operating Temperature	-40°C ~ 85°C
Connectivity	I²C, SPI
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Voltage - Supply (Vcc/Vdd)	1.8 V ~ 3.6 V
Drawing Number	296; 4040064; PW; 8, 14, 16, 20, 24, 28
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MSP430F2013IPW MSP430F2013IPW
