16-bit Microcontrollers (MCU) 8kB Flash 256B RAM 10bit ADC + 1 USART

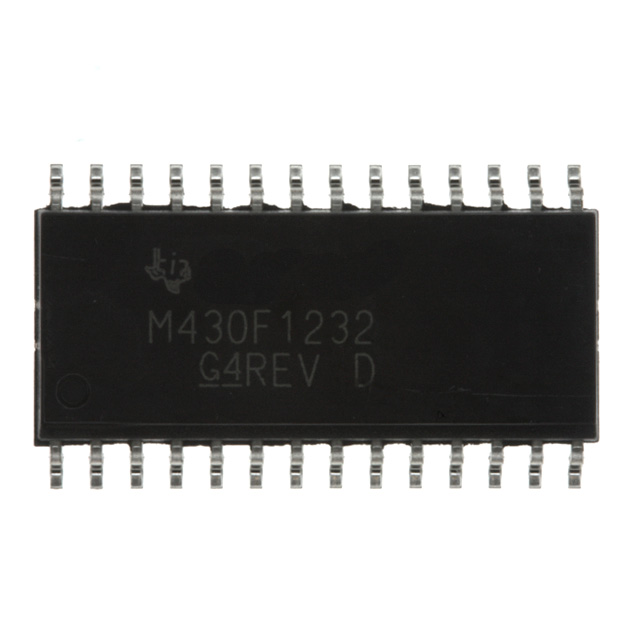

MSP430F1232IPWR: 16-bit Microcontrollers (MCU) 8kB Flash 256B RAM 10bit ADC + 1 USART
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Core : | MSP430 | Processor Series : | 1 Series | ||
Data Bus Width : | 16 bit | Maximum Clock Frequency : | 8 MHz | ||
Program Memory Size : | 8 KB | Data RAM Size : | 256 B | ||
On-Chip ADC : | Yes | Operating Supply Voltage : | 1.8 V to 3.6 V | ||
Package / Case : | TSSOP-28 | Mounting Style : | SMD/SMT |
The MSP430F1232IPWR is one member of the MSP430 family which is designed as the ultralow-power microcontroller that consists of several devices featuring different sets of peripherals targeted for various applications. And this MSP430F1232IPWR is ultralow-power mixed signal microcontrollers with a built-in 16-bit timer, 10-bit A/D converter with integrated reference and data transfer controller (DTC) and fourteen or twenty-two I/O pins.
Features of the MSP430F1232IPWR are:(1)Low Supply Voltage Range 1.8 V to 3.6 V;(2)Five Power Saving Modes;(3)Wake-Up From Standby Mode in less than 6 s;(4)16-Bit RISC Architecture, 125 ns Instruction Cycle Time;(5)16-Bit Timer_A With Three Capture/Compare Registers;(6)10-Bit, 200-ksps A/D Converter With Internal Reference, Sample-and-Hold, Autoscan, and Data Transfer Controller.
The absolute maximum ratings of the MSP430F1232IPWR can be summarized as:(1)Voltage applied at VCC to VSS: -0.3 V to 4.1 V;(2)Voltage applied to any pin: -0.3 V to VCC + 0.3 V;(3)Diode current at any device terminal: ±2 mA;(4)Storage temperature, Tstg (unprogrammed device): -55°C to 150°C;(5)Storage temperature, Tstg (programmed device): -40°C to 85°C. If you want to know more information such as the electrical characteristics about MSP430F1232IPWR, please download the datasheet in www.seekic.com or www.chinaicmart.com.
Technical/Catalog Information | MSP430F1232IPWR |
Vendor | Texas Instruments |
Category | Integrated Circuits (ICs) |
Program Memory Size | 8KB (8K x 8 + 256B) |
RAM Size | 256 x 8 |
Number of I /O | 22 |
Package / Case | 28-TSSOP |
Speed | 8MHz |
Controller Series | MSP430 |
Oscillator Type | Internal |
Packaging | Tape & Reel (TR) |
Program Memory Type | FLASH |
EEPROM Size | - |
Core Processor | RISC |
Data Converters | A/D 8x10b |
Core Size | 16-Bit |
Operating Temperature | -40°C ~ 85°C |
Connectivity | SPI, UART/USART |
Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
Voltage - Supply (Vcc/Vdd) | 1.8 V ~ 3.6 V |
Drawing Number | 296; 4040064; PW; 8, 14, 16, 20, 24, 28 |
Lead Free Status | Lead Free |
RoHS Status | RoHS Compliant |
Other Names | MSP430F1232IPWR MSP430F1232IPWR |
