MSP430F11×

`Low Supply Voltage Range 1.8 V to 3
`Ultralow-Power Consumption:
   -  Active Mode: 200 A at 1 MHz, 2.2
   -  Standby Mode: 0.8 A
   -  Off Mode (RAM Retention): 0.1 A
`Wake-Up From Standby Mode in less than 6 s
`16-Bit RISC Architecture, 125 ns Instruction Cycle Time
`Basic Clock Module Configurations:
   -  Various Internal Resistors
   -  Single External Resistor
   -  32 kHz Crystal
   -  High Frequency Crystal
   -  Resonator
   -  External Clock Source
`16-Bit Timer_A With Three Capture/Compare Registers Serial Onboard Programming, No External Programming Voltage Needed
`Family Members Include:
   MSP430F110: 1KB + 128B Flash Memory 128B RAM
   MSP430F112: 4KB + 256B Flash Memory 256B RAM

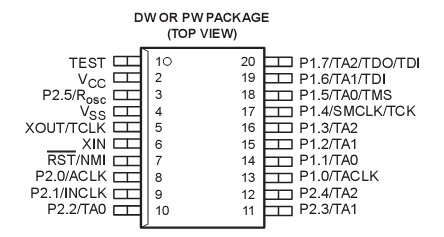

`Available in a 20-Pin Plastic Small-Outline Wide Body (SOWB) Package and 20-Pin Plastic Thin Shrink Small-Outline Package (TSSOP)
`For Complete Module Descriptions, Refer to the MSP430x1xx Family User's Guide, Literature Number SLAU049

The Texas Instruments MSP430F11* ultralow power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The MSP430F11* features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency.

The digitally controlled oscillator (DCO) of MSP430F11* allows wake-up from low-power modes to active mode in less than 6s.

The MSP430F11* series is an ultralow-power mixed signal microcontroller with a built in 16-bit timer and fourteen I/O pins.

Typical applications of MSP430F11* include sensor systems that capture analog signals, convert them to digital values, and then process the data and display them or transmit them to a host system. Stand alone RF sensor front-end is another area of application.
