MSM82JS

Features: • Maximum operating frequency of 8 MHz (MSM82C53-2)• High speed and low power consumption achieved through silicon gate CMOS technology• Completely static operation• Three independent 16-bit down-counters• 3 V to 6 V single power supply• Six counter mo...

product image

MSM82JS Picture
See larger image
SeekIC No. : 004429195 Detail

MSM82JS: Features: • Maximum operating frequency of 8 MHz (MSM82C53-2)• High speed and low power consumption achieved through silicon gate CMOS technology• Completely static operation•...

MSM82JS Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM82JS
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Maximum operating frequency of 8 MHz (MSM82C53-2)
• High speed and low power consumption achieved through silicon gate CMOS technology
• Completely static operation
• Three independent 16-bit down-counters
• 3 V to 6 V single power supply
• Six counter modes available for each counter
• Binary and decimal counting possible
• 24-pin Plastic DIP (DIP24-P-600-2.54): (Product name: MSM82C53-2RS)
• 28-pin Plastic QFJ (QFJ28-P-S450-1.27): (Product name: MSM82C53-2JS)
• 32-pin Plastic SSOP(SSOP32-P-430-1.00-K): (Product name: MSM82C53-2GS-K)


Pinout

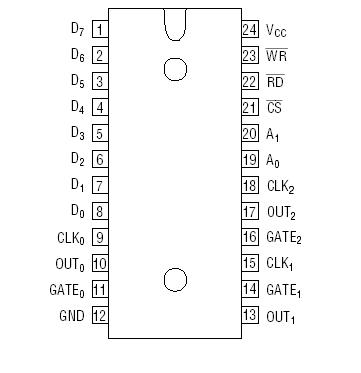

Connection Diagram


Specifications

Parameter
Unit
Symbol
Condition
Rating
MSM82C53-2RS
MSM82C53-2GS
MSM82C53-2JS
Supply Voltage
Vdc
VCC
Respect
to GND
0.5 to + 7
Input Voltage
Vdc
VIN
0.5 to VCC + 0.5
Output Voltage
Vdc
VOUT
0.5 to VCC + 0.5
Storage Temperature
mAdc
TSTG
-
55 to + 150
Power Dissipation
W
W
PD
Ta = 25°C
0.9
0.7
0.9



Description

The MSM82JS is programmable universal timers designed for use in microcomputer systems. Based on silicon gate CMOS technology, it requires a standby current of only 100 mA (max.) when the MSM82JS is in the nonselected state. During timer operation, power consumption is still very low only 8 mA (max.) at 8 MHz of current required.

The MSM82JS consists of three independent counters, and can count up to a maximum of 8 MHz (MSM82C53-2). The timer features six different counter modes, and binary count/BCD count functions. Count values can be set in byte or word units, and all functions are freely programmable.
