MSM82C59A-2JS

Features: • Silicon gate CMOS technology for high speed and low power consumption• 3 V to 6 V single power supply• MSM80C85AH system compatibility (MAX5 MHz)• MSM80C86A-10/88A-10 system compatibility (MAX8 MHz)• 8-level priority interrupt control• Interrupt leve...

product image

MSM82C59A-2JS Picture
See larger image
SeekIC No. : 004429190 Detail

MSM82C59A-2JS: Features: • Silicon gate CMOS technology for high speed and low power consumption• 3 V to 6 V single power supply• MSM80C85AH system compatibility (MAX5 MHz)• MSM80C86A-10/88...

MSM82C59A-2JS Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM82C59A-2JS
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Silicon gate CMOS technology for high speed and low power consumption
• 3 V to 6 V single power supply
• MSM80C85AH system compatibility (MAX5 MHz)
• MSM80C86A-10/88A-10 system compatibility (MAX8 MHz)
• 8-level priority interrupt control
• Interrupt levels expandable up to 64 levels
• Programmable interrupt mode
• Maskable interrupt
• Automatically generated CALL code (85 mode)
• TTL compatible
• 28-pin Plastic DIP (DIP28-P-600-2.54): (Product name: MSM82C59A-2RS)
• 28-pin Plastic QFJ (QFJ28-P-S450-1.27): (Product name: MSM82C59A-2JS)
• 32-pin Plastic SSOP (SSOP32-P-430-1.00-K): (Product name: MSM82C59A-2GS-K)


Pinout

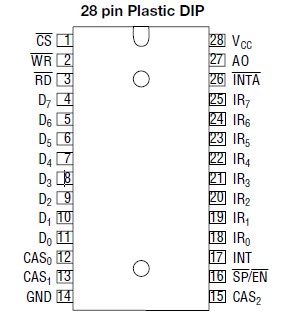

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Rating
Unit
MSM82C59A-2RS
MSM82C59A-2GS
MSM82C59A-2JS
Power Supply Voltage
VCC
Respect to GND
0.5 - +7
V
Input Voltage
VIN
0.5 - VCC +0.5
V
Output Voltage
VOUT
0.5 - VCC +0.5
V
Storage Temperature
TSTG
-
55 - +150
°C
Power Dissipation
PD
Ta = 25°C
0.9
0.7
0.9
W



Description

The MSM82C59A-2JS is a programmable interrupt for use in MSM80C85AH and MSM80C86A- 10/88A-10 microcomputer systems.

Based on CMOS silicon gate technology, this MSM82C59A-2JS features an extremely low standby current of 100A (max.) in chip non-selective status. During interrupt control status, the power consumption is very low with only 5 mA (max.) being required.

Internally, the MSM82C59A-2JS can control priority interrupts up to 8 levels, and can be expanded up to 64 levels by cascade connection of a number of devices.
