MSM82C54-2JS

Features: • Maximum operating frequency of 10 MHz (VCC=5 V)• High speed and low power consumption achieved by silicon gate CMOS technology• Completely static operation• Three independent 16-bit down-counters• Status Read Back Command• Six counter modes available...

product image

MSM82C54-2JS Picture
See larger image
SeekIC No. : 004429184 Detail

MSM82C54-2JS: Features: • Maximum operating frequency of 10 MHz (VCC=5 V)• High speed and low power consumption achieved by silicon gate CMOS technology• Completely static operation• Three...

MSM82C54-2JS Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM82C54-2JS
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Maximum operating frequency of 10 MHz (VCC=5 V)
• High speed and low power consumption achieved by silicon gate CMOS technology
• Completely static operation
• Three independent 16-bit down-counters
• Status Read Back Command
• Six counter modes available for each counter
• Binary and decimal counting possible
• 24-pin Plastic DIP (DIP24-P-600-2.54): (Product name: MSM82C54-2RS)
• 28-pin Plastic QFJ (QFJ28-P-S450-1.27): (Product name: MSM82C54-2JS)
• 32-pin Plastic SSOP (SSOP32-P-430-1.00-K): (Product name: MSM82C54-2GS-K)


Pinout

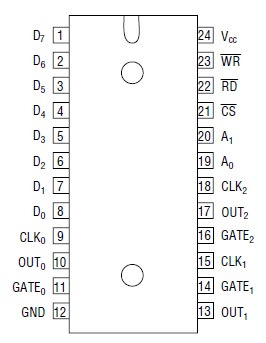

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Rating
Unit
MSM82C54-2RS
MSM82C54-2GS
MSM82C54-2JS
Power Supply Voltage
VCC
With
respect to GND
0.5 - +7
V
Input Voltage
VIN
0.5 - VCC +0.5
V
Output Voltage
VOUT
0.5 - VCC +0.5
V
Storage Temperature
TSTG
-
55 - +150
°C
Power Dissipation
PD
Ta = 25°C
0.9
0.7
0.9
W



Description

The MSM82C54-2JS is a programmable universal timer designed for use in microcomputer systems. Based on silicon gate CMOS technology, it requires a standby current of only 10 A (max.) when the chip is in the non-selected state. And during timer operation, the power consumption of MSM82C54-2JS  is still very low with only 10mA (max.) of current required.

MSM82C54-2JS consists of three independent counters, and can count up to a maximum of 10 MHz. The timer features six different counter modes, and binary count/BCD count functions. Count values of MSM82C54-2JS can be set in byte or word units, and all functions are freely programmable.
