MSM80C88A-10GS

Features: • 8-Bit Data Bus interface• 16-Bit Internal Architecture• 1 Mbyte Direct Addressable Memory Space• Software Compatible with MSM80C86A-10• Internal 14-Word by 16-bit Register Set• 24-Operand Addressing Modes• Bit, Byte, Word and String Operations&...

product image

MSM80C88A-10GS Picture
See larger image
SeekIC No. : 004429170 Detail

MSM80C88A-10GS: Features: • 8-Bit Data Bus interface• 16-Bit Internal Architecture• 1 Mbyte Direct Addressable Memory Space• Software Compatible with MSM80C86A-10• Internal 14-Word by ...

MSM80C88A-10GS Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM80C88A-10GS
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 8-Bit Data Bus interface
• 16-Bit Internal Architecture
• 1 Mbyte Direct Addressable Memory Space
• Software Compatible with MSM80C86A-10
• Internal 14-Word by 16-bit Register Set
• 24-Operand Addressing Modes
• Bit, Byte, Word and String Operations
• 8 and 16-bit Signed and Unsigned Arithmetic Operation
• From DC to 10 MHz Clock Rate (Note)
• Low Power Dissipation (10mA/MHz)
• Bus Hold Circuitry Eliminated Pull-Up Resistors
• 40-pin Plastic DIP (DIP 40-P-600-2.54): (Product name: MSM80C88A-10RS)
• 44-pin Plastic QFJ (QFJ44-P-S650-1.27): (Product name: MSM80C88A-10JS)
• 56-pin Plastic QFP (QFP56-P-1519-1.00-K): (Product name: MSM80C88A-10GS-K)


Pinout

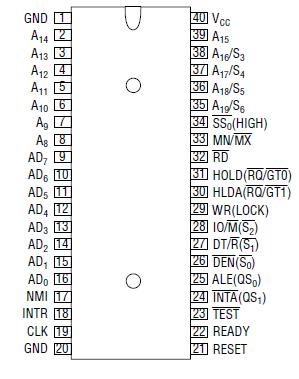

Connection Diagram


Specifications

Parameter Symbol Rating Units Condition
MSM80C88A-10RS MSM80C88A-10GS MSM80C88A-10JS
Power Supply Voltage VCC 0.5 to +7 V With respect
to GND
Input Voltage VIN 0.5 to VCC +0.5 V
Output Voltage VOUT 0.5 to VCC +0.5 V
Storage Temperature TSTG 65 to +150 -
Power Dissipation PD 1.0 0.7 W Ta = 25



Description

The MSM80C88A-10GS is internal 16-bit CPUs with 8-bit interface implemented in Silicon Gate CMOS technology. It is designed with the same processing speed as the NMOS8088-1, but with considerably less power consumption.

The processor MSM80C88A-10GS has attributes of both 8 and 16-bit microprocessor. It is directly compatible with MSM80C86A-10 software and MSM80C85AH hardware and peripherals.
