MSM7717-03

Features: •Single power supply:2.7 V to 3.8 V•Low power consumption Operating mode: 20 mW Typ.VDD= 3 V Power-down mode:0.03 mW Typ.VDD= 3 V•Conforms to ITU-T Companding law MSM7717-01:m/A-law pin selectable MSM7717-02:-law MSM7717-03:A-law•Built-in PLL eliminates a master ...

product image

MSM7717-03 Picture
See larger image
SeekIC No. : 004429144 Detail

MSM7717-03: Features: •Single power supply:2.7 V to 3.8 V•Low power consumption Operating mode: 20 mW Typ.VDD= 3 V Power-down mode:0.03 mW Typ.VDD= 3 V•Conforms to ITU-T Companding law MSM771...

MSM7717-03 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM7717-03
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•Single power supply:2.7 V to 3.8 V
•Low power consumption
  Operating mode:   20 mW Typ.VDD= 3 V
  Power-down mode:0.03 mW Typ.VDD= 3 V
•Conforms to ITU-T Companding law
         MSM7717-01:m/A-law pin selectable
         MSM7717-02:-law
         MSM7717-03:A-law
•Built-in PLL eliminates a master clock
•Serial data rate:64/128/256/512/1024 kHz
                            96/192/384/768/1536/1544/2048/200 kHz
•Adjustable transmit gain
•Adjustable receive gain
•Built-in reference voltage supply
•Package options:
  24-pin plastic SOP (SOP24-P-430-1.27-K)    (Product name: MSM7717-01GS-K)
                                                                      (Product name: MSM7717-02GS-K)
                                                                      (Product name: MSM7717-03GS-K)
  20-pin plastic SSOP (SSOP20-P-250-0.95-K)(Product name: MSM7717-01MS-K)
                                                                       (Product name: MSM7717-02MS-K)
                                                                       (Product name: MSM7717-03MS-K)

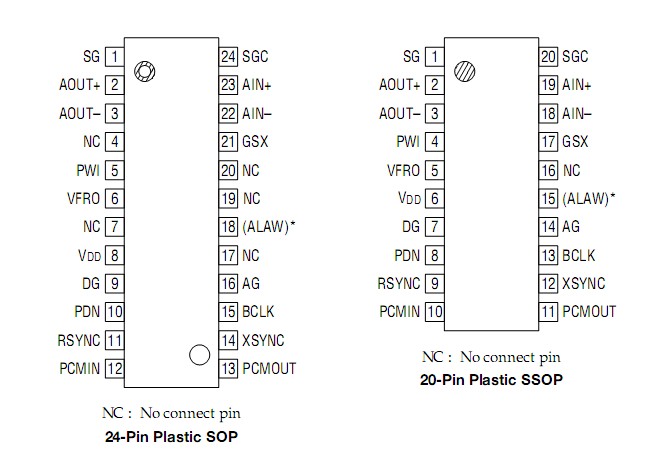

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Condition
Rating
Unit
Power Supply Voltage
VDD
-
0.3 to +7
V
Analog Input Voltage
VAIN
-
0.3 to VDD+ 0.3
V
Digital Input Voltage
VDIN
-
0.3 to VDD+ 0.3
V
Storage Temperature
TSTG
-

55 to +150
°C



Description

The MSM7717-03 is a single-channel CODEC CMOS IC for voice signals ranging from 300 to 3400 Hz with filters for A/D and D/A conversion.

Designed especially for a single-power supply and low-power applications, the MSM7717-03 is optimized for ISDN terminals and telephone terminals in digital wireless systems.The MSM7717-03 uses the same transmission clocks as those used in the MSM7508B and MSM7509B. The analog output, which can drive a 1.2 kW  load, can directly drive a handset receiver differentially.
