MSM7652

Features: • Video signal system: NTSC/PAL• Scanning system: interlaced/noninterlaced (NTSC : 262 lines/PAL : 312 lines)• Input digital level: conforms to ITU-R601 (CCIR601)• Input-output timing: conforms to ITU Rec. 656 or ITURBT 624-4• Input signal sampling ratio : Y...

product image

MSM7652 Picture
See larger image
SeekIC No. : 004429127 Detail

MSM7652: Features: • Video signal system: NTSC/PAL• Scanning system: interlaced/noninterlaced (NTSC : 262 lines/PAL : 312 lines)• Input digital level: conforms to ITU-R601 (CCIR601)• ...

MSM7652 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM7652
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Video signal system: NTSC/PAL
• Scanning system: interlaced/noninterlaced (NTSC : 262 lines/PAL : 312 lines)
• Input digital level: conforms to ITU-R601 (CCIR601)
• Input-output timing: conforms to ITU Rec. 656 or ITURBT 624-4
• Input signal sampling ratio : Y:Cb:Cr = 4:2:2
• Supported input formats
  · ITU Rec. 656
  · YCbCr 27 MHz format (8-bit input)
  · ITU-R601 13.5 MHz (8-bit (Y) + 8-bit (CbCr) input)
• Output video signals
  · NTSC/PAL composite video signals and S video signals
  · Y, R-Y, B-Y analog signals (selectable)
• Sampling frequency : 27 MHz
• Internal SSG circuit (Can operate as a master in other operation modes than CCIR Rec. 656 mode)
• Internal 3ch 10-bit DAC
• 3-bit title graphics can be displayed
• Color bar function
• I2C-bus host interface function
• 3.3 V single power supply (each I/O pin is 5 V tolerable)
• Closed caption function
• Package 56-pin plastic QFP (QFP56-P-910-0.65-2K) (Product name: MSM7652GS-2K)


Application

• Video CD
• Video game equipment
• Electronic still cameras
• Video file systems
• Video cameras
• Videophones
• Multimedia equipment
• Video printers
• Videoconferencing systems
• Scanners
• Video graphics boards


Pinout

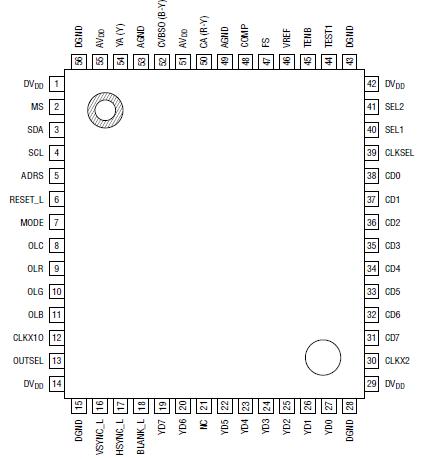

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Rating
Unit
DVDD
 Power Supply Voltage
-
0.3 to +4.5
V
AVDD
-
0.3 to +4.5
V
VI
 Input Voltage
DVDD = 3.3 V
0.3 to +5.5
V
IO
 Analog Output Current
-
50
mA
PW
 Power Dissipation
-
600
mW
TSTG
 Storage Temperature
-
55 to +150
°C



Description

The MSM7652 is a digital NTSC/PAL encoder. By inputting digital image data conforming to ITU Rec. 656 or ITURBT 601, it outputs selected analog composite video signals, analog S video signals or Y, R-Y, B-Y signals. For the scanning system, interlaced or noninterlaced mode can be selected.

Since the MSM7652 is provided with pins dedicated to overlay function, text and graphics can be superimposed on a video signal.

In addition, this encoder has an internal 10-bit DAC. So, when compared with using a conventional analog encoder, the number of components, the board space, and points of adjustment can greatly be reduced, thereby realizing a low cost and high-accuracy system.

The MSM7652 provides the optional functions such as Closed Caption Signal Generation Function.

The host interface of MSM7652 provided conforms to Philips's I2C specifications, which reduces interconnections between this encoder and mounting components.

The internal synchronization signal generator (SSG) allows the MSM7652 to operate in master mode.
