MSM7650

Features: • Video signal system: NTSC/PAL• Scanning system: interlaced/noninterlaced• Input digital level: conforms to ITU-601 (CCIR601)• Input-output timing: conforms to CCIR Rep 624-4• Input signal (sampling ratio) Y:Cb:Cr (4:2:2/4:1:1)• Supported sampling rat...

product image

MSM7650 Picture
See larger image
SeekIC No. : 004429126 Detail

MSM7650: Features: • Video signal system: NTSC/PAL• Scanning system: interlaced/noninterlaced• Input digital level: conforms to ITU-601 (CCIR601)• Input-output timing: conforms to CCI...

MSM7650 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSM7650
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Video signal system: NTSC/PAL
• Scanning system: interlaced/noninterlaced
• Input digital level: conforms to ITU-601 (CCIR601)
• Input-output timing: conforms to CCIR Rep 624-4
• Input signal (sampling ratio)
   Y:Cb:Cr (4:2:2/4:1:1)
• Supported sampling rates
   • NTSC 4Fsc (14.32 MHz)
   • NTSC ITU-R601 (13.5 MHz)
   • NTSC Square Pixel (12.27 MHz)
   • PAL ITU-R601 (13.5 MHz)
   • PAL Square Pixel (14.75 MHz)
• Internal SSG circuit (internally generates sync signals)
• Operation by external synchronization possible
• Internal 3ch 9-bit DAC (samples by double frequency)
• 3-bit title graphics can be displayed
• I2C-bus host interface function
• Package
   80-pin plastic QFP (QFP80-P-1420-0.80-BK) (Product name: MSM7650GS-BK)


Application

• Video game equipment
 • CD-ROM
• Electronic still camera
• Video graphics board
• Video printer
• Videophone
• Video camera
• Video conference system
• Scanne
• Multimedia equipment
• Image file system
• Digital VTR




Pinout

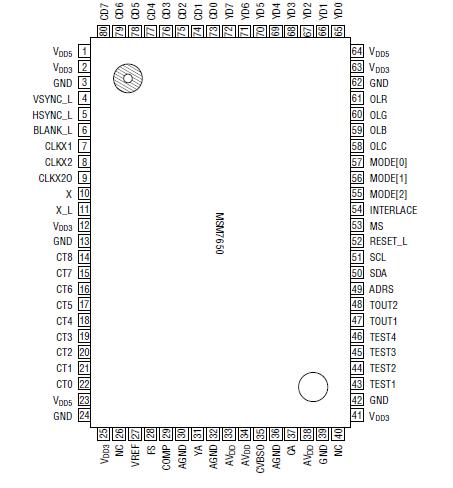

Connection Diagram


Specifications

Parameter

 Symbol Condition Rating Unit
Power Supply Voltage VDD5 Ta=25°C 0.3 to +7 V
VDD3 Ta=25°C 0.3 to +4.5
AVDD Ta=25°C 0.3 to +4.5
Input Voltage VI Ta=25°C 0.3 to VDD5 +0.3 V
Analog Output Current IO  - 40 mA
Power Consumption PW  - 800 mW
Storage Temperature TSTG  v 55 to +150 °C



Description

The MSM7650 is a digital NTSC/PAL encoder. By inputting digital image data conforming to CCIR Rep624-4, it outputs analog composite video signals and analog S video signals. For the scanning system, interlaced or noninterlaced mode can be selected.

Since the MSM7650 is provided with pins dedicated to overlay function, text and graphics can be superimposed on a video signal.

In addition, this encoder MSM7650 has an internal 9-bit DAC. So, when compared with using a conventional analog encoder, the number of components, the board space, and points of adjustment can greatly be reduced, thereby realizing a low cost and high-accuracy system.

The host interface of MSM7650 provided conforms to Philips's I2C specifications, which reduces interconnections between this encoder and mounting components.

The internal synchronization signal generator (SSG) allows the MSM7650 to operate in master or slave mode.
